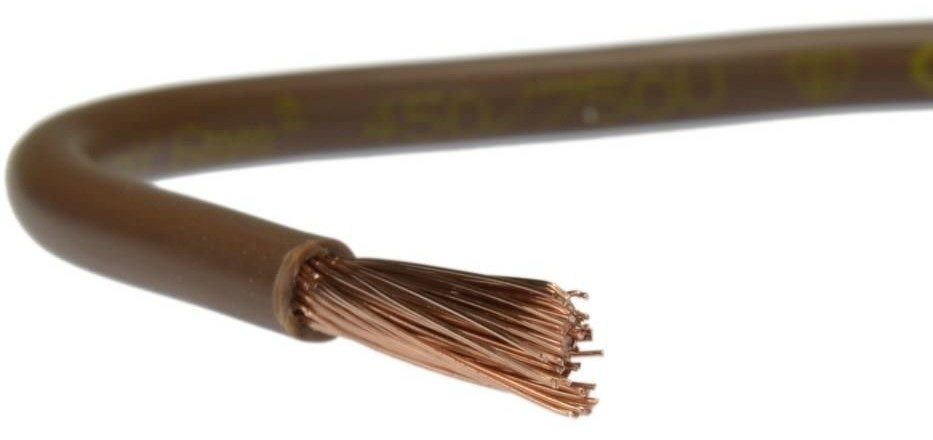

H07V-K LGY 10 Brown Single-Core Flexible Cable 450/750V Class 5
The H07V-K LGY 10 is a flexible single-core cable, ideal for applications requiring high quality and compliance with international standards.
Application
The cable is intended for electrical installations in buildings, and its parameters allow for use in various conditions. It meets quality and safety standards, making it a reliable choice.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm2 and above
- Conductor type: flexible copper wires in accordance with IEC 60228, Class 5
- Insulation: PVC, operating temperature up to 70°C
- Cables should be tested as specified in EN 50525
- The electrical resistance of the wires should be tested according to IEC 60228
- Voltage test: no insulation breakdown will occur, according to EN 50525
- Fire resistance test according to IEC 60332 part 1
