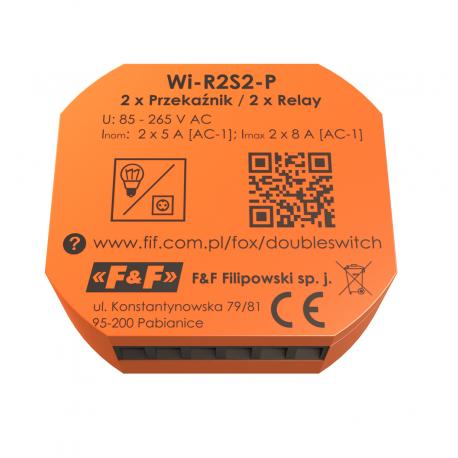

WI-R2S2-P DOUBLE SWITCH 2 CHANNEL WI-FI RELAY 230V
DOUBLE SWITCH is used to control lighting and any electrical devices in the home. It allows you to turn on and off the connected electrical device. With it, you can operate most household appliances.
Application
Installed under the light switch, it provides the ability to control two lighting circuits. It works with both classic and bell switches. It offers the possibility of connecting local control buttons and setting the function they perform. Control of receivers is possible via a mobile application and timers. The built-in clock with power backup ensures correct operation even without a Wi-Fi connection. It supports REST API, allowing integration with other home automation systems. It has built-in thermal protection and is convenient to install in a junction box with a diameter of fi 60 mm.
Technical Data
- Power supply voltage: 85÷265 V AC
- Control input: 85÷265 V AC
- Control impulse current: less than 1 mA
- Maximum load current (AC-1): rated current 2 x 5 A
- Maximum load current (AC-1): maximum (temporary) current 2 x 8 A
- Humidity (non-condensing): below 90%
- Radio frequency: 2.4 GHz
- Transmission: WI-FI
- Radio power (IEEE 802.11n): below 13 dBm
- Receiver sensitivity: -98 dBm
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Power consumption in standby: 1.2 W
- Power consumption in operation (relay on): 2.2 W
- Operating temperature: 0÷45°C
- Dimensions: Ø54 (48×43 mm), height: 20 mm
- Installation: in a flush-mounted box Ø60
- Protection class: IP20
