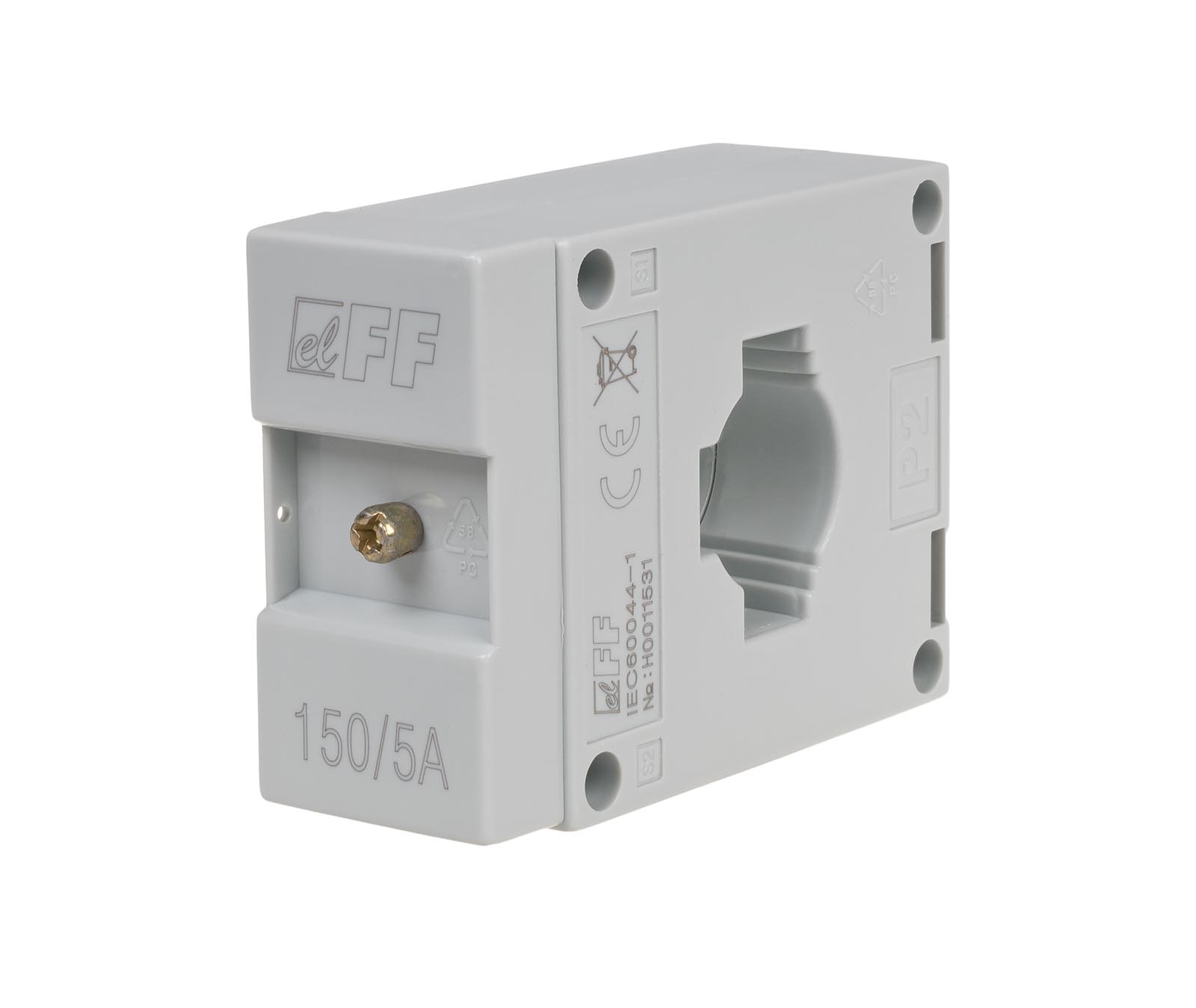

TI-150/5 CURRENT TRANSFORMER 150/5A 2.5VA CLASS 0.5

Transformation ratio 150/5. Power 2.5 VA.

Application

The current transformer is used to proportionally change large current intensities to lower values, adapted to the measurement ranges of control and measuring devices. Single-phase type.

Technical Data

• Construction: closed core
• Transformation ratio lp/ls: 150/5
• Class: 0.5
• Power [VA]: 2.5 VA
• Frequency: 50÷60 Hz
• Maximum operating voltage: 0.66 kV AC
• Standard number: IEC 60044-1
• Nominal secondary current Is: 5 A
• Insulation breakdown voltage: 3 kV/1 min.
• Weight: 0.235 kg
• Safety factor FS: ˂ 5
• Connection S1/S2: screw terminals 4 mm²
• Dimensions of hole P1/P2 – A1/A2/A3xB; C [mm]: 30 mm/25 mm/20 mm x 10 mm; Ø22 mm
• Dimensions WxHxD [mm]: 61 mm × 81 mm × 34 mm
• Tightening torque: 0.5 Nm
• Operating temperature: -5÷40°C
• Mounting position: vertical/horizontal
• Mounting: panel/busbar
• Degree of protection: IP20
