Steinel IS 345 MX Highbay Motion Sensor KNX Surface Mounted Square IP54 White Product Code 058296
Discover the modern Steinel IS 345 MX Highbay motion and twilight sensor, ideal for building automation, ensuring energy savings and reliability in challenging working conditions.
Application

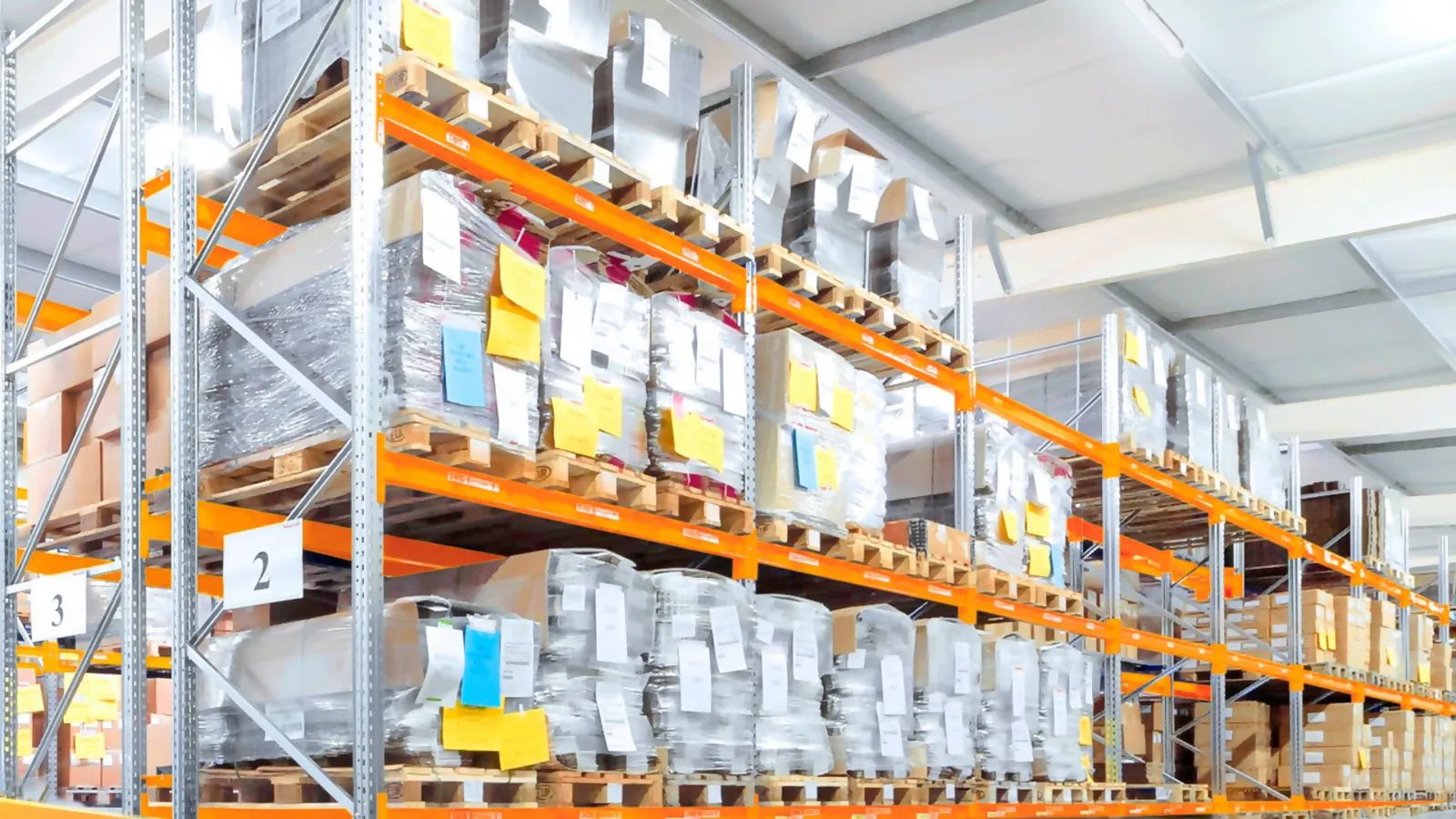

The IS 345 MX Highbay sensor is perfect for warehouses, production halls, and logistics centers, providing effective monitoring of large areas with 360° detection.
Technical Data
- Device Type: infrared motion sensor
- Detection Technology: PIR (passive infrared), light sensor
- Detection Angle: 360°, opening angle 90°
- Detection Range: 30 × 4 meters (120 m2)
- Mounting Height: from 4 to 16 meters
- Ambient Light Setting Range: 2 – 1000 Lux
- Relay Operating Time: from 5 seconds to 15 minutes
- Power Supply: KNX bus
- Rated Current: 12.5 mA
- Connection Type: master/slave
- Operating Temperature Range: from -20°C to +50°C
- Protection Class: IP54
- Housing Material: plastic, white color (RAL 9003)
- Additional Features: crawling detection, light level adjustment 0–100%, constant lighting control, twilight setting TEACH
- Optional Accessories: Smart Remote control, RC6 KNX, RC7 KNX, black protective cover
- Product Code: 058296
- EAN: 4007841058296
- Warranty: 5 years
