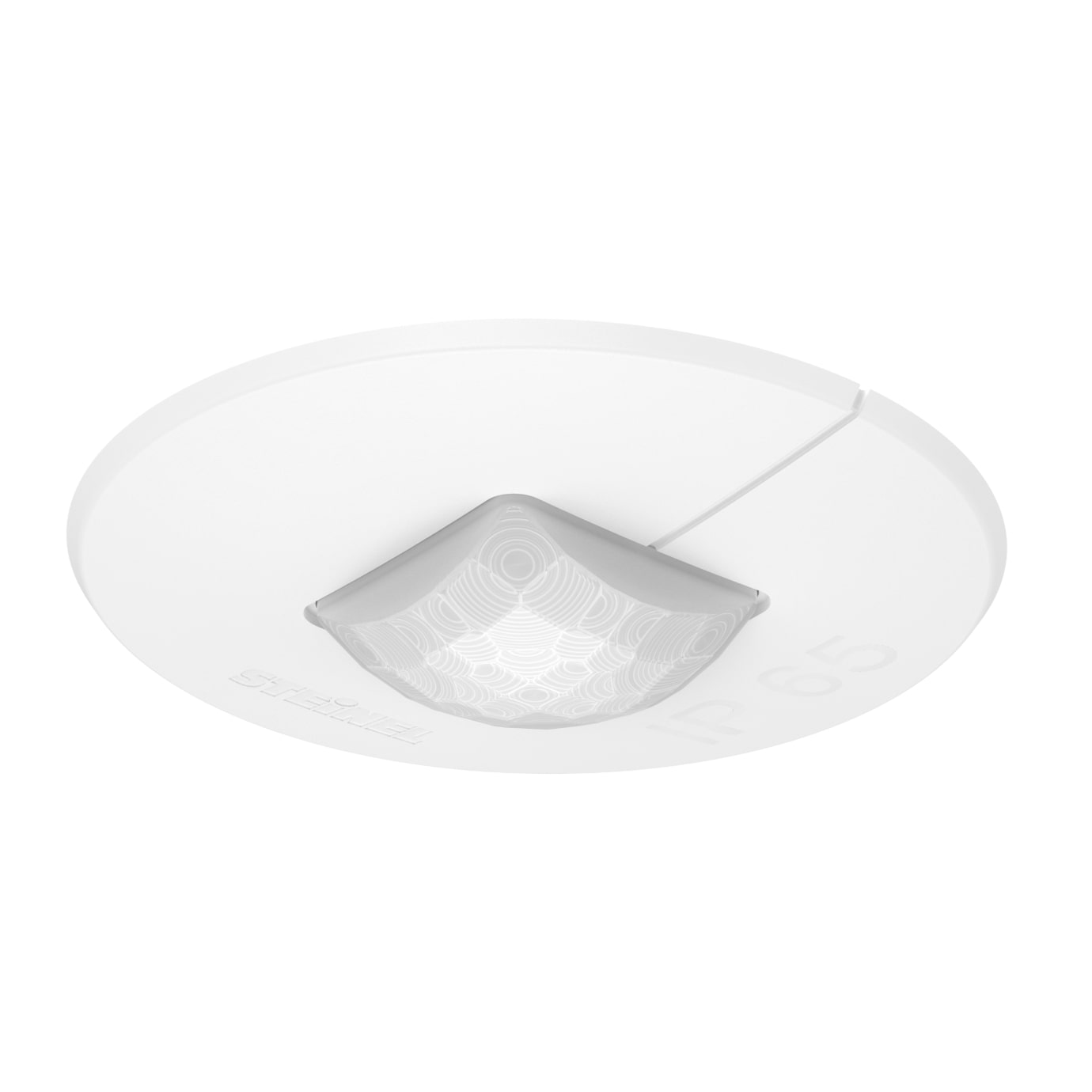

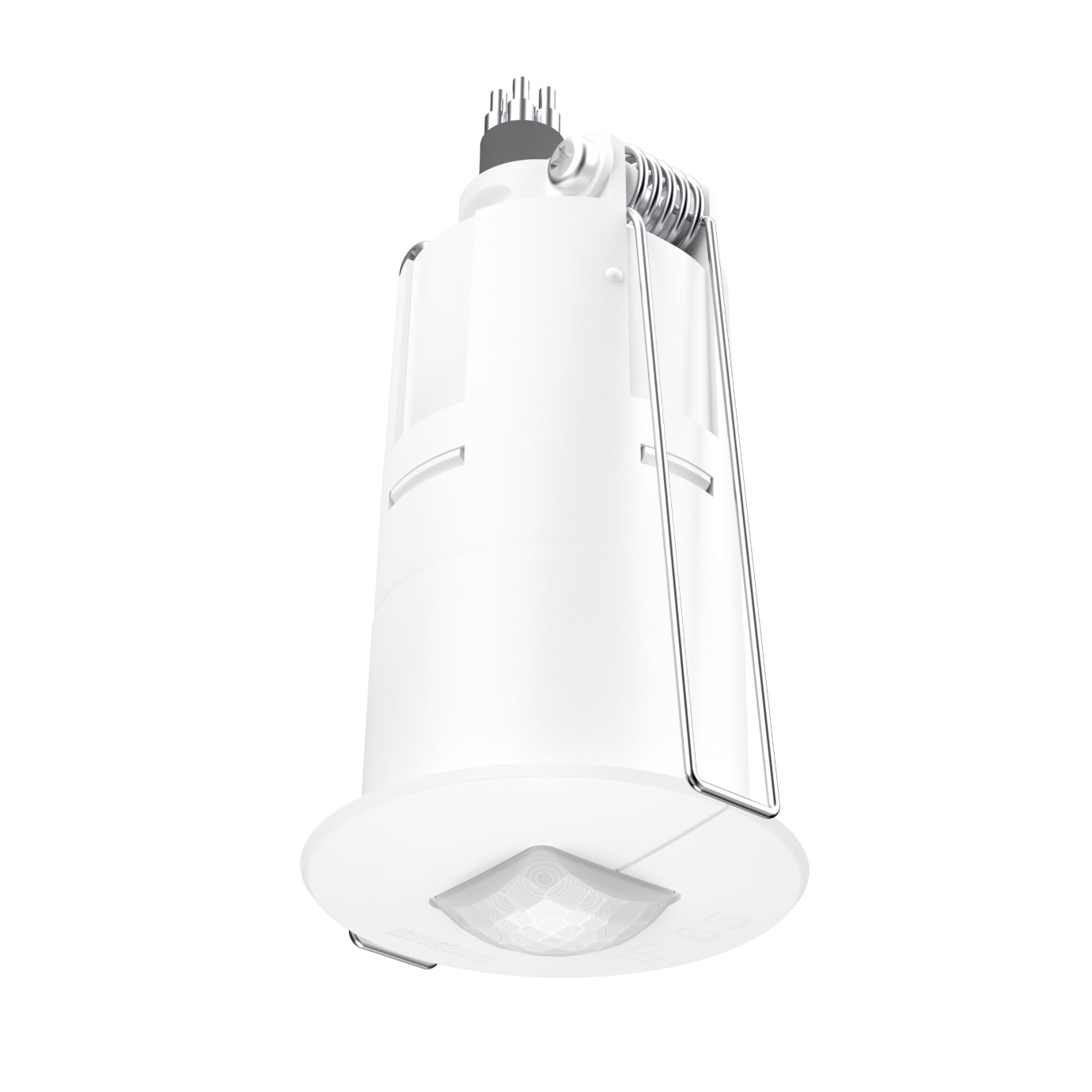

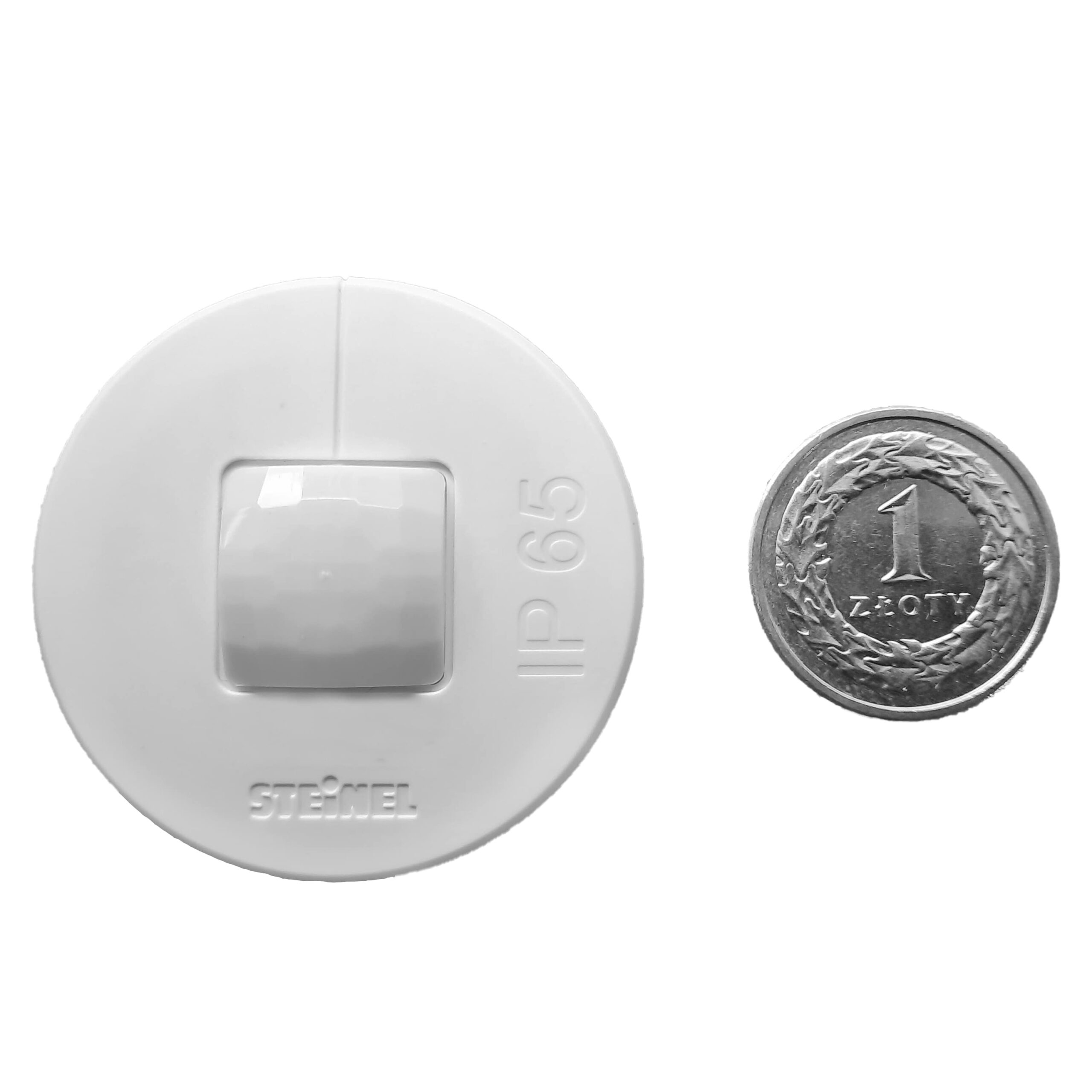

Steinel IR Quattro MICRO Presence Sensor 6m DALI-2 IPD Flush-mounted IP65 230V White Product Code 053871
This is a modern and complementary solution for building automation that combines functionality with aesthetics.
Application
The IR Quattro MICRO DALI-2 IPD sensor is used in many spaces that require precise presence and twilight detection.
Technical Data
- Device Type: PIR presence and motion sensor with light sensor
- Detection Technology: passive infrared + light sensor
- Detection Angle: 360°
- Opening Angle: 90°
- Presence Range: 4 × 4 m (16 m2)
- Radial Range: 4 × 4 m (16 m2)
- Tangential Range: 6 × 6 m (36 m2)
- Switching Zones: 168
- Installation Height: 2.0 – 5.0 m (optimal: 2.8 m)
- Protection Class: IP65
- Operating Temperature: -25°C to +55°C
- Power Supply: 12–22.5 V
- System Power Supply: DALI bus
- Connection Type: master/slave
- DALI Control Output: addressable / slave
- TEACH Function: yes
- Constant Light Control: yes
- Creep Protection: yes
- Color: white (RAL 9003)
- Material: plastic
- Dimensions: 43 × 76 mm (Ø × H)
- Product Code: 053871
- EAN: 4007841053871
- Warranty: 5 years
