Steinel IR Quattro DALI-2 APC Presence and Twilight Sensor Flush Mount IP20 Square White
The Steinel IR Quattro DALI-2 APC presence sensor is an innovative device that provides intelligent lighting management. Ideal for offices and service areas, its advanced features make energy usage more efficient and economical.
Application and Features of the Steinel IR Quattro DALI-2 APC Presence Sensor
This product is perfect for offices, bathrooms, and commercial spaces. The STEINEL brand guarantees quality and a modern approach to building automation.
Technical Specifications
- Device Type: PIR presence and motion sensor with light sensor
- Detection Technology: passive infrared + light sensor
- Detection Angle: 360°
- Opening Angle: 100°

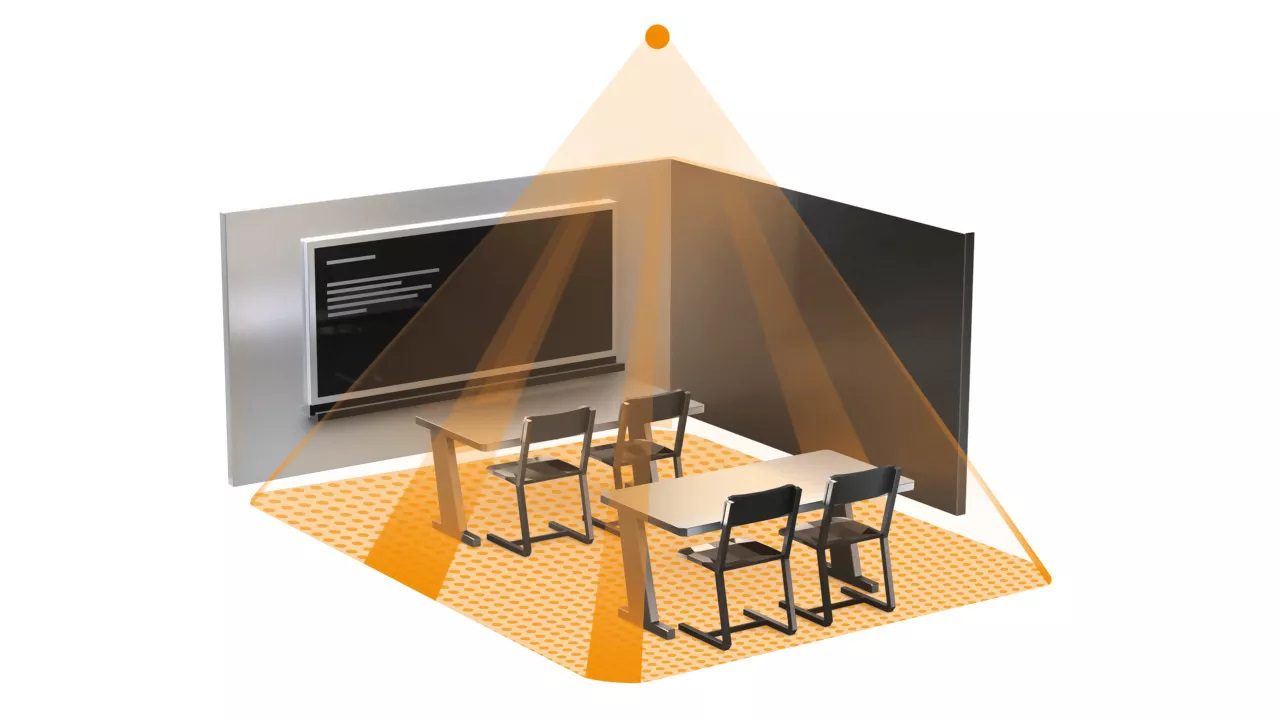

- Presence Range: 4 × 4 m (16 m²)
- Touch Range: 5 × 5 m (25 m²)
- Radial Range: 7 × 7 m (49 m²)
- Mounting Height: 2.5 – 8.0 m (optimal: 2.8 m)
- Protection Class: IP20
- Brightness Range: 10 – 1000 Lux
- Time Settings: 30 s – 30 min
- DALI-2 Functions: 2 channels, Broadcast, main light 50–100%, base level 1–60 min or all night
- Operating Modes: test, automatic, semi-automatic, manual, ON/OFF
- Parameterization: RC5, RC8 remote, Smart Remote, DIP, potentiometer
- Connection Type: Master/slave, cable
- Power Supply: 230 V / 50–60 Hz
- Material: plastic
- Color: white (RAL 9010)
- Dimensions: 76 × 120 × 120 mm
- Operating Temperature: 0 – 40 °C
- Product Code: 002749
- EAN: 4007841002749
- Warranty: 5 years
The Steinel IR Quattro DALI-2 APC presence sensor is a reliable device that combines modern technologies with ease of use. With its advanced features, it simplifies daily life and helps save energy.
