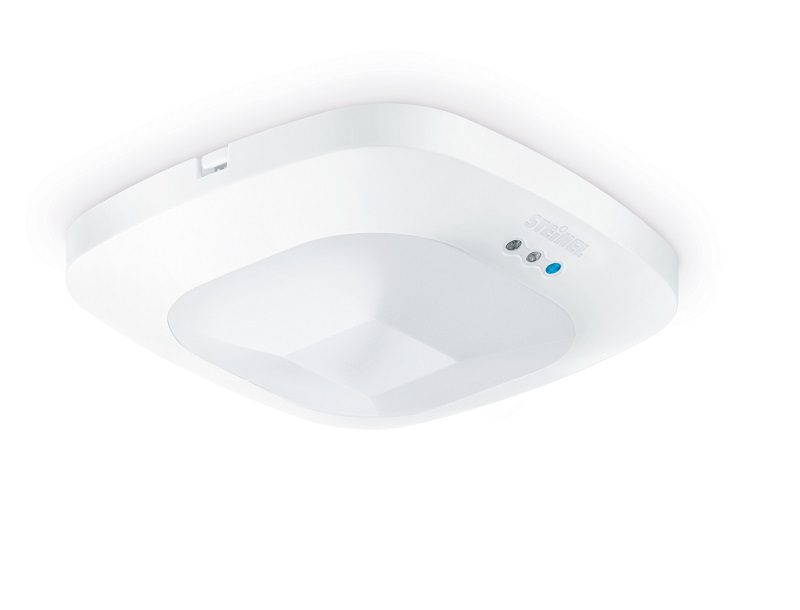

Steinel HF 360 COM2 Flush-Mounted Presence and Twilight Sensor IP20 Square White
The Steinel HF 360 COM2 presence and twilight sensor is an innovative solution that provides intelligent lighting control in demanding spaces such as restrooms, changing rooms, and corridors. Thanks to high-frequency technology, this sensor easily penetrates obstacles, making it a versatile tool for any building.
Application and Features of the HF 360 COM2 Sensor
This product is suitable for a variety of applications, and choosing the Steinel brand guarantees reliability and high-quality workmanship.
Technical Specifications
- Detection Angle: 360°
- Detection Range: Ø12 m (113 m²), electronically adjustable
- Mounting Height: 2.5 – 3.5 m (optimally 2.8 m)
- Technology: High frequency 5.8 GHz
- Detection Through Obstacles: Yes – glass, wood, stud walls
- Additional Output: Yes – e.g., for a fan
- Load Capacity: up to 2000 VA (LED: <2 W – 100 W, 2–8 W – 300 W, >8 W – 600 W)
- Twilight Threshold: 10 – 1000 Lux (TEACH)
- Operating Time: 30 s – 30 min
- Functions: IQ-mode, test mode, automatic, semi-automatic, manual
- Connection Type: Master/Master, Master/Slave
- Connection: Cable
- Power Supply: 230 V / 50–60 Hz
- Power Consumption: <1 mW
- Material: Plastic
- Color: White
- Protection Class: IP20
- Dimensions: 56 × 120 × 120 mm
- Product Code: 002848
- EAN: 4007841002848
- Warranty: 5 years
In summary, the Steinel HF 360 COM2 presence sensor is an excellent choice for those who need an effective solution for lighting and ventilation automation. With its advanced features and flexibility of application, it provides ideal support in energy management in any space.
