Steinel Dual US COM1 Presence Sensor Flush-mounted 360° 20 × 3m IP20 230 V Code: 007843

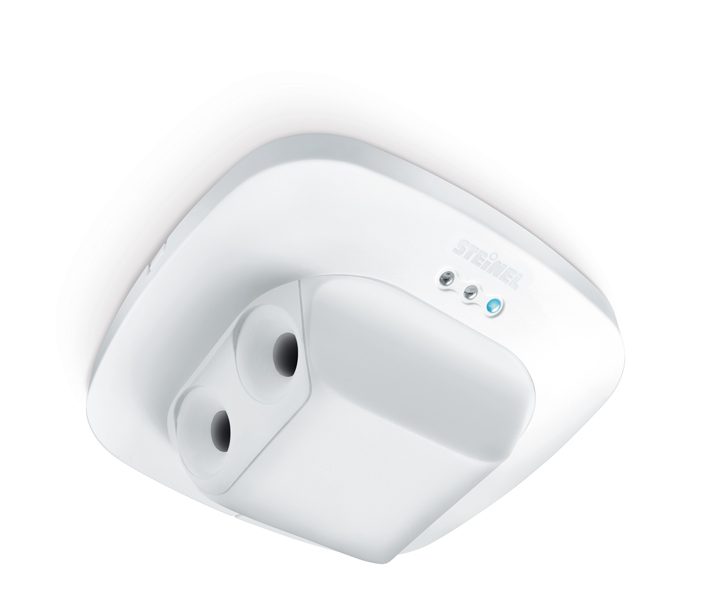

Steinel Dual US COM1 is a professional flush-mounted presence sensor based on ultrasonic technology, designed for automatic lighting control in long communication spaces such as corridors, galleries, or passages. With a dual ultrasonic sensor and a detection range of up to 3 × 18 m (passage), the device “sees around corners” and detects movement regardless of the ambient temperature.
Application

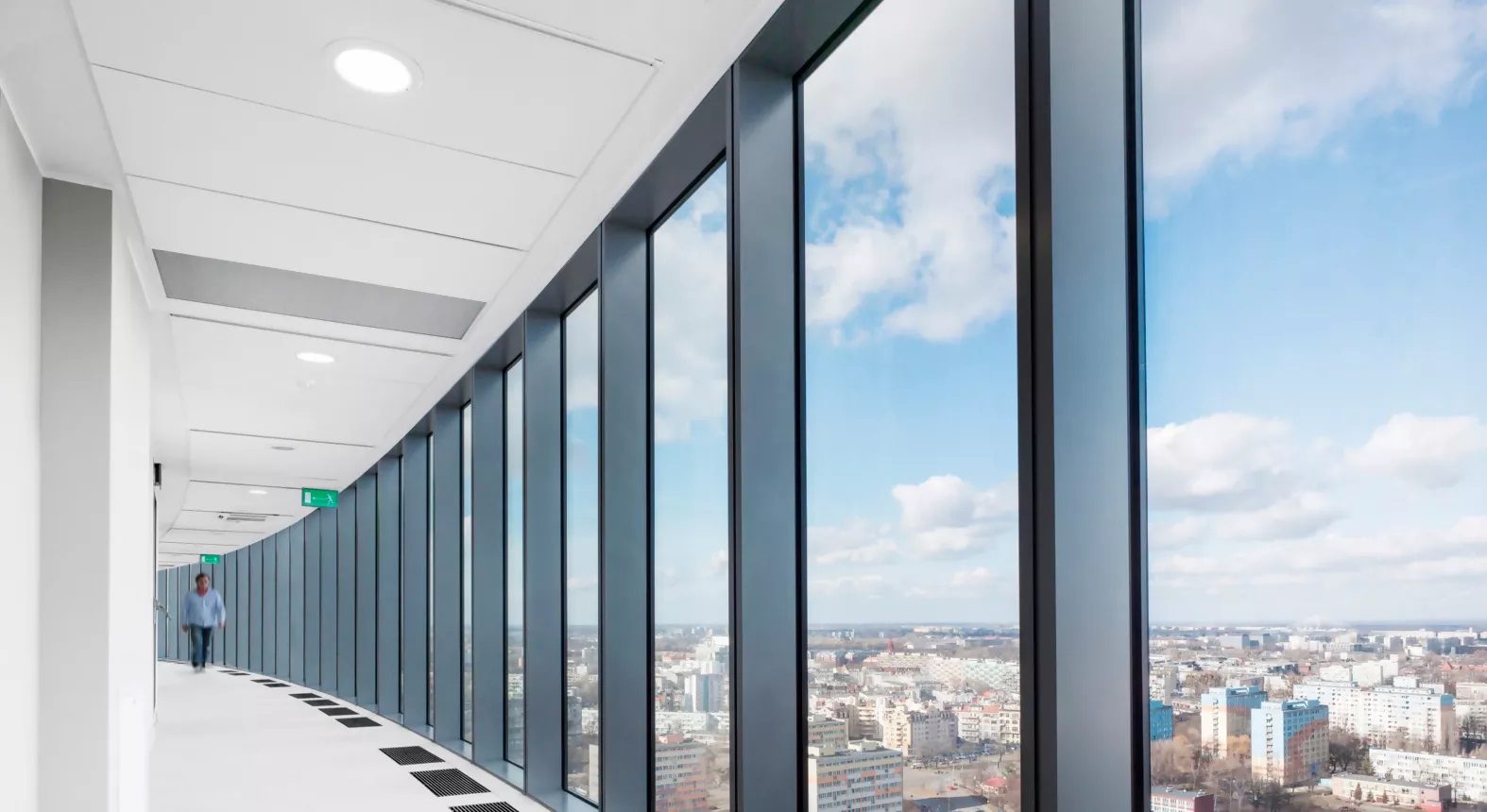

The Steinel Dual US COM1 sensor is perfect for automatic lighting in corridors, passages, galleries, and tunnels. It enables presence detection in restrooms, changing rooms, and back areas, as well as integration with lighting systems in office buildings, educational institutions, and other public facilities.
Technical Data
- Device type: Ultrasonic presence sensor
- Sensor technology: 2 × US 40 kHz + light sensor
- Detection angle: 360°

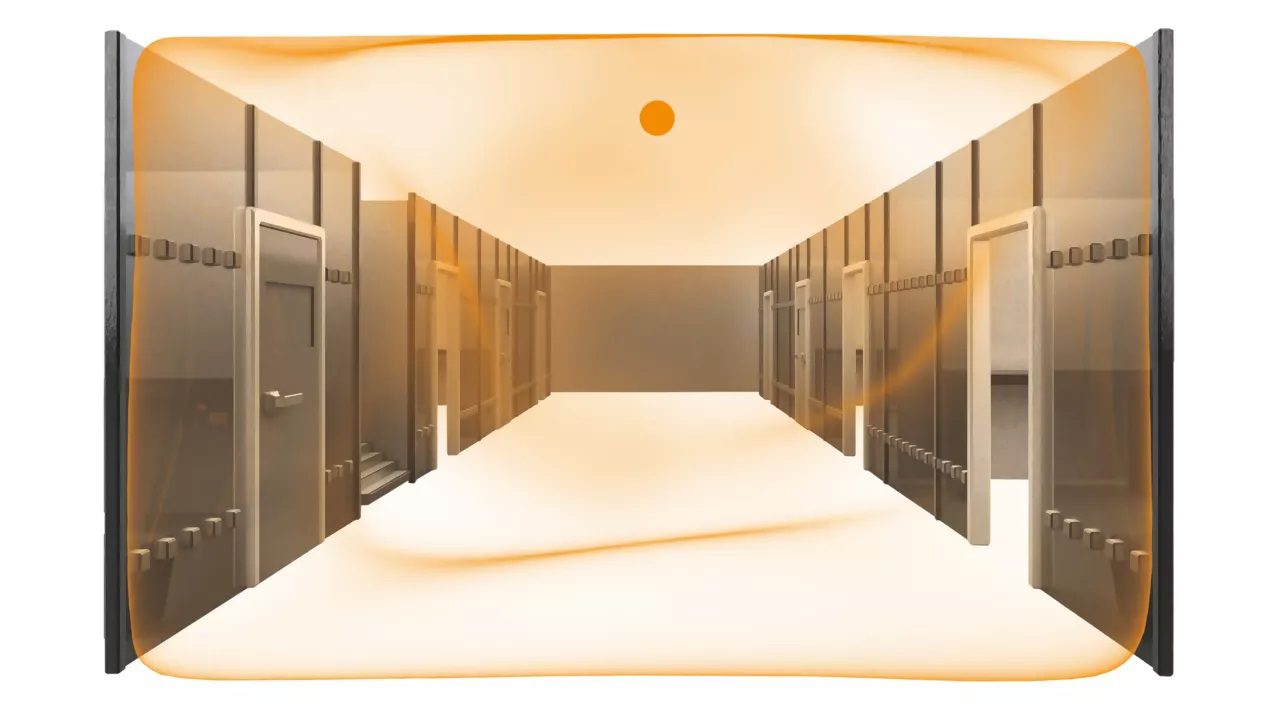

- Detection range: 20 × 3m (60 m², radial and tangential passage)
- Opening angle: 180°
- Mounting height: 2.5 – 3.5 m (optimal 2.8 m)
- Power supply: 230 V / 50–60 Hz
- Load capacity: 2000 W (LED: up to 600 W)
- Power consumption: < 1 mW
- Dusk threshold: 10 – 1000 Lux
- Time setting: 30 s – 30 min, pulse mode (~2 s)
- Functions: TEACH, IQ-mode, automatic/semi-automatic
- Connections: Master/Master, Master/Slave
- Compatibility with remotes: Smart Remote, RC8
- Protection class: IP20
- Housing material: Plastic (RAL 9010 – white)
- Dimensions: 71 × 120 × 120 mm
- Operating temperature: -25°C to +55°C
- Product code: 007843
- EAN: 4007841007843
- Warranty: 5 years
