Steinel DUAL HF COM1 Presence and Twilight Sensor Flush-Mounted IP20 Square White
Intelligent presence sensor with dual HF detection – ideal for restrooms, transition areas, and multifunctional rooms.
Application and Features of the Steinel DUAL HF Presence Sensor
The Steinel DUAL HF presence sensor is an advanced flush-mounted device that works perfectly in challenging locations such as restrooms with stalls, changing rooms, or staircases. With a high frequency of 5.8 GHz and the ability to detect through obstacles, this sensor provides excellent functionality, allowing for energy savings and convenient use.
Technical Data
- Device Type: HF Presence Sensor
- Detection Angle: 360° (opening angle 140°)

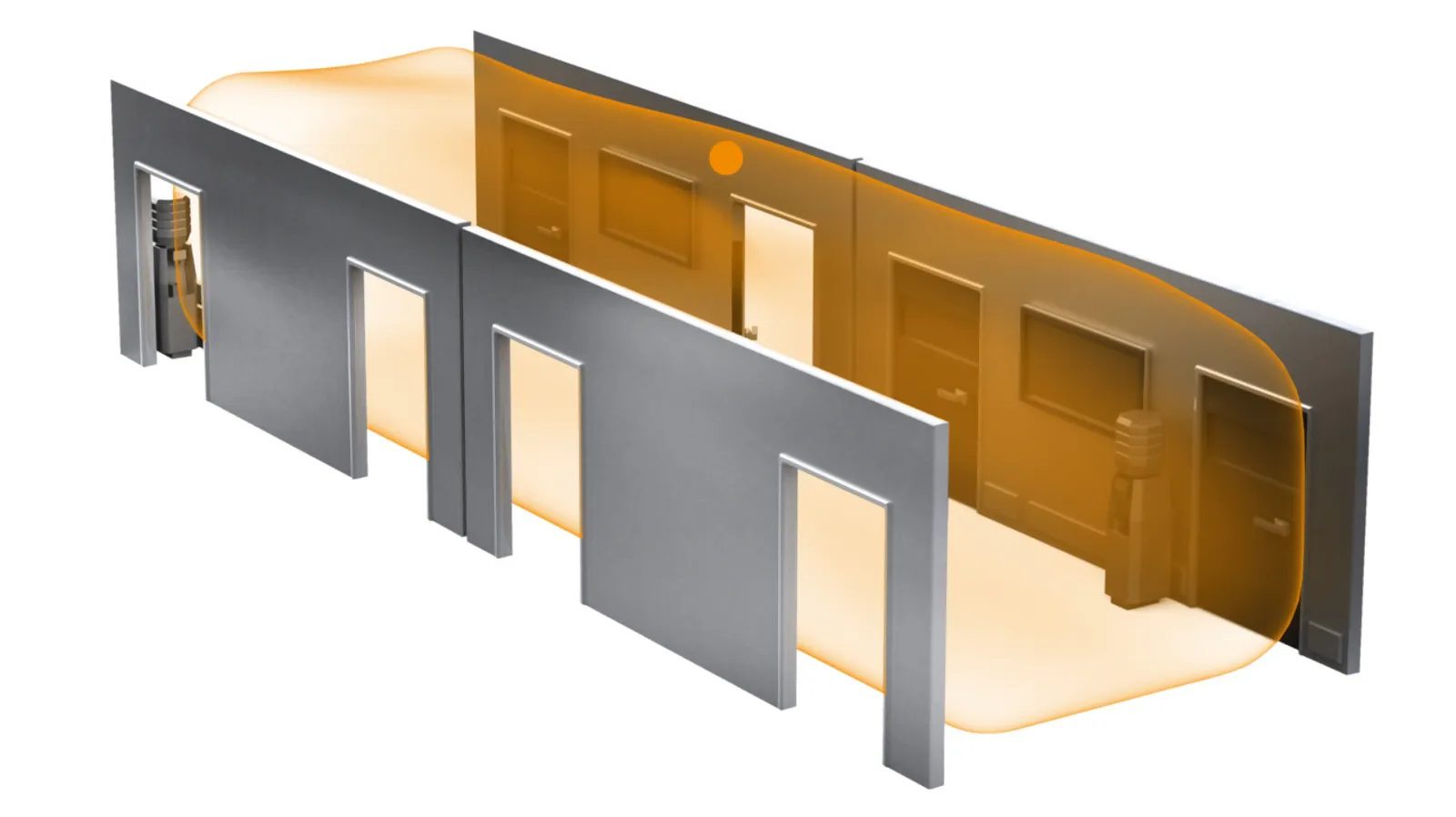

- Detection Range: 20 × 3m (adjustable in two directions)
- Mounting Height: 2.5 – 3.5 m
- Technology: High frequency 5.8 GHz
- Detection Through Obstacles: Yes – glass, wood
- Teach-in Function: Yes (with RC8 remote – optional)
- Operating Modes: IQ-mode, pulse, automatic
- Operating Brightness: 10–1000 lx
- DIM (dimmed brightness): 100–1000 lx
- Time Setting: 30 s – 30 min, pulse (approx. 2 s)
- Connections: Master/Master and Master/Slave
- Power Supply: 230 V / 50–60 Hz
- Protection Class: IP20 (IP54 with AP-BOX)
- Material: UV-resistant plastic
- Dimensions: 120 × 120 × 75 mm
- Operating Temperature: -25°C to +55°C
- Product Code: ST008978
- Color: White
In summary, the Steinel DUAL HF COM1 presence sensor is an excellent solution for anyone who values modern technology in lighting automation.
