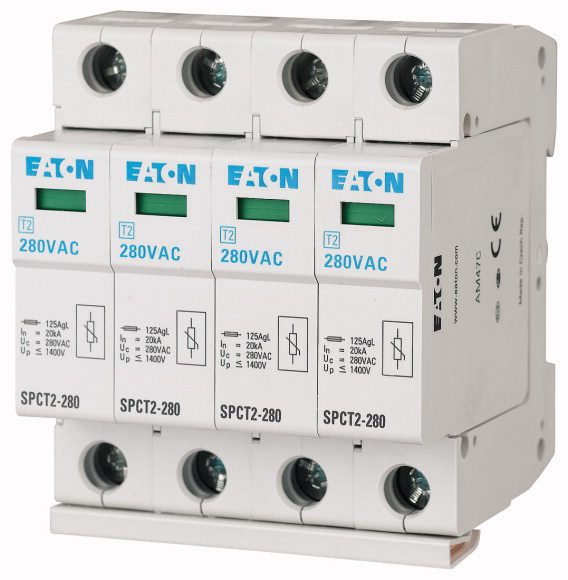

SPCT2-280/4 Surge Protector T2 C 4P 20/40KA
The surge protector from EATON is a universal solution for protecting electrical installations against the effects of surges. The device effectively reduces both direct discharges and indirect surges.
Application
The surge protector is installed to safeguard electrical installations against the effects of indirect atmospheric discharges and surges resulting from switching operations. It serves as an additional layer of protection, typically installed in sub-distribution boards — behind the main type 1 surge protectors.
Technical Data
- Type: SPCT2-280/4
- Protector Type: T2
- Rated AC Voltage [V]: 0
- Protection Level L-N [kV]: 1
- Maximum Continuous Operating Voltage AC [V]: 280
- Size: 4 modules
- Operation Indication on Device: Optical
- Poles: 4
- Protection Level [kV]: 1.4
- Rated DC Voltage [V]: 0
- Protection Level L-PE/N-PE [kV]: 0
- Rated Discharge Current – Peak Value (8/20) [kA]: 20
