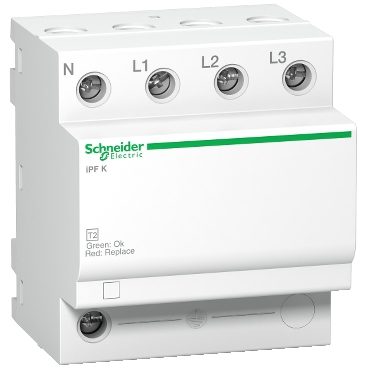

Schneider Electric Surge Protector Acti9 iPFK40-T2-3N
The Acti9 iPF K surge protector protects electrical installations from the effects of indirect lightning strikes and from switching surges.
Application
The Acti9 iPF K surge protector can be used in TT and TN-S earthing systems as well as in 3-phase installations.
Technical Data
- Type: Type 2 surge protector
- Reference number: A9L15688
- Maximum discharge current (Imax): 40 kA
- Nominal discharge current (In): 15 kA
- Protection level (Up): <= 1.5 kA
- Usability with short-circuit currents: up to 25 kA
- Connection configuration: 3+1-pole
