Candle Switch Sedna Design & Elements

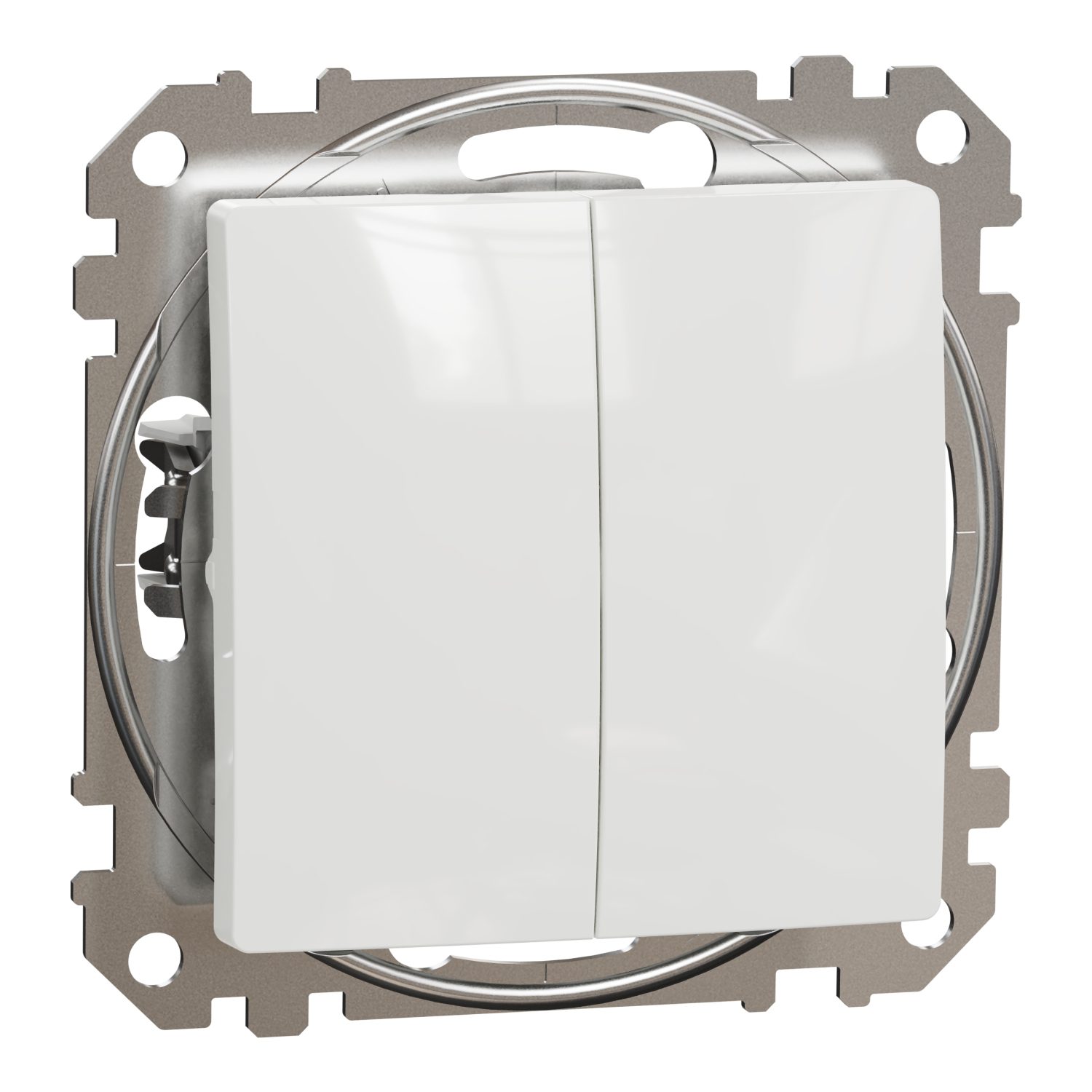

The candle switch, white, is a device from the Sedna Design & Elements series by Schneider Electric.
Application
The switch can be used as a traditional switch for two independent light sources, as well as for turning on other devices with a maximum current draw of up to 10 AX.
Technical Data
- Color: white
- Width: 73 mm
- Height: 73 mm
- Depth: 37 mm
- Projection depth: 24 mm
- Length of insulation removed from the cable: 13 mm
- Degree of protection: IP20
- Power range: 2300 W
- Material: thermoplastic with increased resistance to UV radiation
- Mounting type: flush-mounted
- Terminals: screw terminals, 3 terminals (2 for loads, 1 for power supply)
