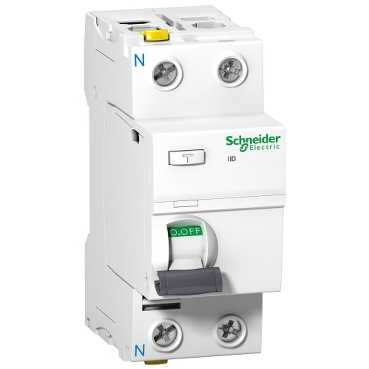

Schneider Electric Acti9 iID-25-2-30-A 25A Residual Current Circuit Breaker
Modular and reliable residual current circuit breaker from Schneider Electric, designed to protect against electric shock.
Application
The Acti 9 iID-25-2-30-A residual current circuit breaker is an ideal solution for electrical systems. It has been designed to ensure safety and reliability in various applications.
Technical Data
- Type: 2-pole
- Current: 25A
- Residual current: 30mA type A
- Operating voltage: 220VAC – 240VAC
- Switching capacity: 1500A (Im/IΔm)
- Electrical endurance: up to 15000 cycles
- Mechanical endurance: up to 20000 cycles
- Protection degree: IP20 and IP40 in enclosure
- Mounting: on DIN rail
- Current leakage protection class: type A
- Compliance with standard: EN/IEC 61008-1
