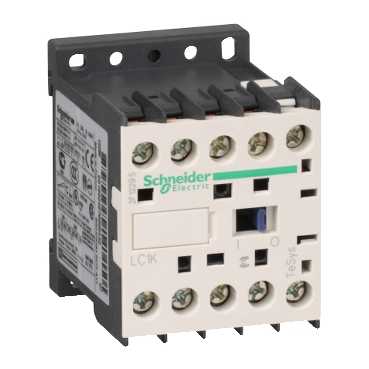

Schneider Electric TeSys K AC3 6A 3P 1NO Contactor 24VAC Screw Terminal, LC1K0610B7
TeSys K contactor, 3-pole (3NO), for applications in motor control up to 6A/690V AC-3 (2.2kW@400V), and for applications in controlling non-inductive loads up to 20A/690V AC-1.
Application
Provides a 24V 50/60Hz AC coil, built-in auxiliary contact 1NO, connection via screw terminals. Ensures reliability and durability in standard applications with a working speed of up to 600 cycles/hour and in environments up to 50°C.
Technical Data
- Rated current: 6A AC-3
- Operating voltage: up to 690V
- Built-in auxiliary contact: 1NO
- Coil: 24V 50/60Hz AC
- Width: 45mm
- Mounting: DIN rail or screw mounting
- Certifications: IEC, UL, CSA, CCC, EAC
- Green Premium compliance: RoHS/REACh
