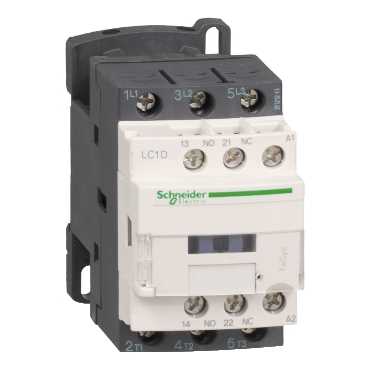

Schneider Electric TeSys D AC3 Power Contactor 9A

The TeSys D contactor, designed for efficient motor control, offers unmatched performance and durability in demanding conditions.

Application

The TeSys D contactor is the ideal solution for controlling motors with a power of up to 9A at 690V, particularly in applications requiring high reliability, such as industry and automation.

Technical Data

• Type: 3-pole (3NO)
• Maximum load: 9A/690V AC-3/3e (4kW@400V)
• Coil: AC 48V 50/60Hz
• Auxiliary contacts: 1NO + 1NC (with mirrored NC certification)
• Connection: screw terminals
• Operating temperature: up to 60°C
• Operating speed: up to 3600 cycles per hour
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
• Dimensions: width 45 mm
• Mounting: DIN rail or screw mounting
• Green Premium: compliant with RoHS/REACh
