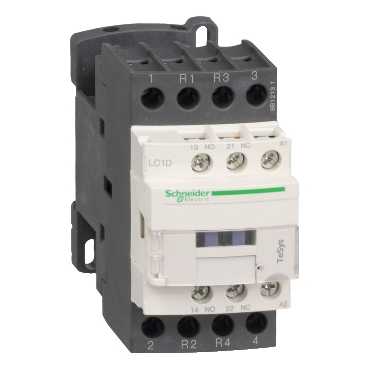

Schneider Electric TeSys D AC3 Power Contactor 40A 4P 2NO 2NC Coil 48VAC, LC1D258E7

TeSys D contactor, 4-pole (2NO+2NC), for applications with non-inductive loads up to 40A/690V AC-1.

Application

It features an AC 48V 50/60Hz coil, built-in auxiliary contacts 1NO+1NC (with mirrored NC certification), connection via screw terminals. With operating speeds of up to 3600 cycles per hour and a temperature of up to 60°C, it ensures high reliability and durability.

Technical Data

• Type: TeSys D Power Contactor
• Load: up to 40A/690V AC-1
• Coil: AC 48V 50/60Hz
• Built-in auxiliary contacts: 1NO+1NC
• Power supply: 48V AC
• Max. operating speed: 3600 cycles/h
• Max. operating temperature: 60°C
• Dimensions: width 45 mm
• Mounting: on DIN rail or screw mounting
• Certifications: IEC, UL, CSA, CCC, EA C, Marine
• Green Premium: RoHS/REACh
