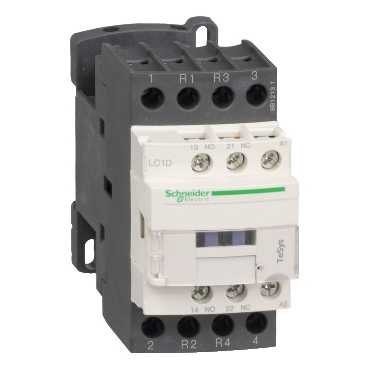

Schneider Electric TeSys D Power Contactor AC3 40A 4P 2NO 2NC Coil 230VAC, LC1D258P7
TeSys D contactor, 4-pole (2NO+2NC), for use with non-inductive loads up to 40A/690V AC-1.
Application
The contactor is used in electrical installations to control non-inductive loads. Its application covers various areas of industry where reliability and safety in operation are required.
Technical Data
- Type: TeSys D Power Contactor
- Load: 40A/690V AC-1
- Coil: AC 230V 50/60Hz
- Auxiliary Contact: 1NO + 1NC
- Operating Temperature: up to 60°C
- Working Speed: up to 3600 cycles per hour
- Width: 45 mm
- Mounting: DIN rail or screw mounting
- Certifications: IEC, UL, CSA, CCC, EAC, Marine
- Green Premium: Compliance with RoHS/REACH regulations
