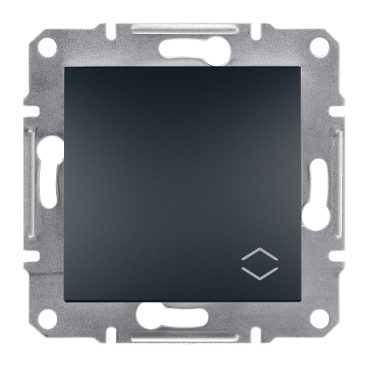

Asfora Stair Switch without Frame Screw Terminals Anthracite EPH0400371
The Asfora Stair Switch without Frame (screw terminals), anthracite EPH0400371 is an electrical installation accessory from the Asfora series by Schneider Electric.
Application
The Asfora switch has the following dimensions: width 71 mm, height 71 mm, depth 42 mm, projection depth 15 mm. Its weight is 0.0750 kg. The product uses copper as the conductor material. Its power range is 2300 W. The switch has a painted surface finish and features simple and intuitive installation. It is designed for flush mounting and has self-clamping terminals. It is safe to use, with an IP20 protection rating, and can be used as a traditional light switch or to switch other devices with a maximum current draw of up to 10 AX.
Technical Data
- Width: 71 mm
- Height: 71 mm
- Depth: 42 mm
- Projection depth: 15 mm
- Weight: 0.0750 kg
- Conductor material: copper
- Power range: 2300 W
- Surface finish: painted
- Protection rating: IP20
- Maximum current draw: 10 AX
