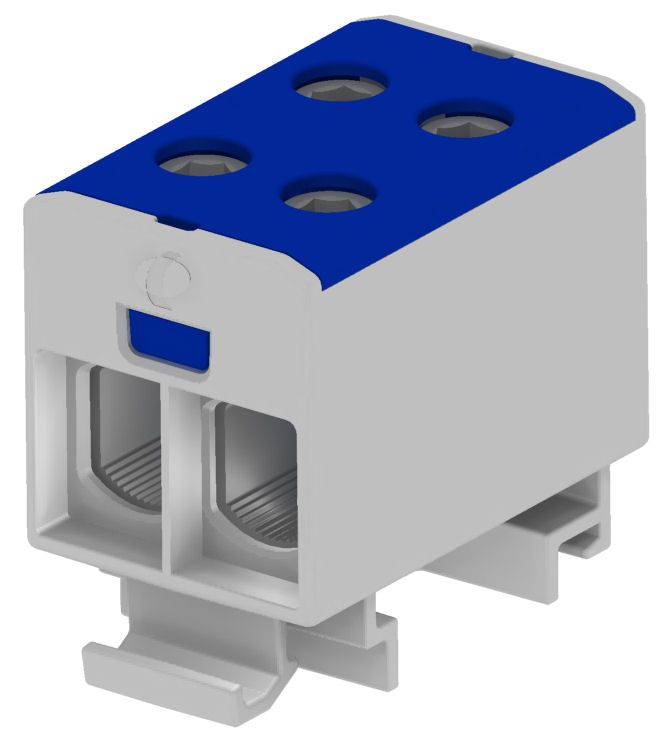

Rail Connector Through 2x AL/CU 1.5-50.0mm2 1000V AC/1500V DC Universal Clamp Blue
High-quality rail connector designed for various applications in energy, industry, and residential installations.
Application
OTL connectors are universal solutions that allow for the connection of both copper and aluminum wires without the need for additional adapters. Thanks to their flexibility, they meet the requirements of various industrial applications and are ready to use right out of the package.
Technical Data
- Short-circuit tested Class A
- EN 61238 certification for copper and aluminum wires
- Flammability class V0 according to UL94
- Rated voltage: 1000V AC/DC
- Compliance with standards EN 60947, EN 61238, FI certification
- Cross-section range: from 1.5mm2 to 50.0mm2
- Available color versions: gray, blue, yellow-green, red
