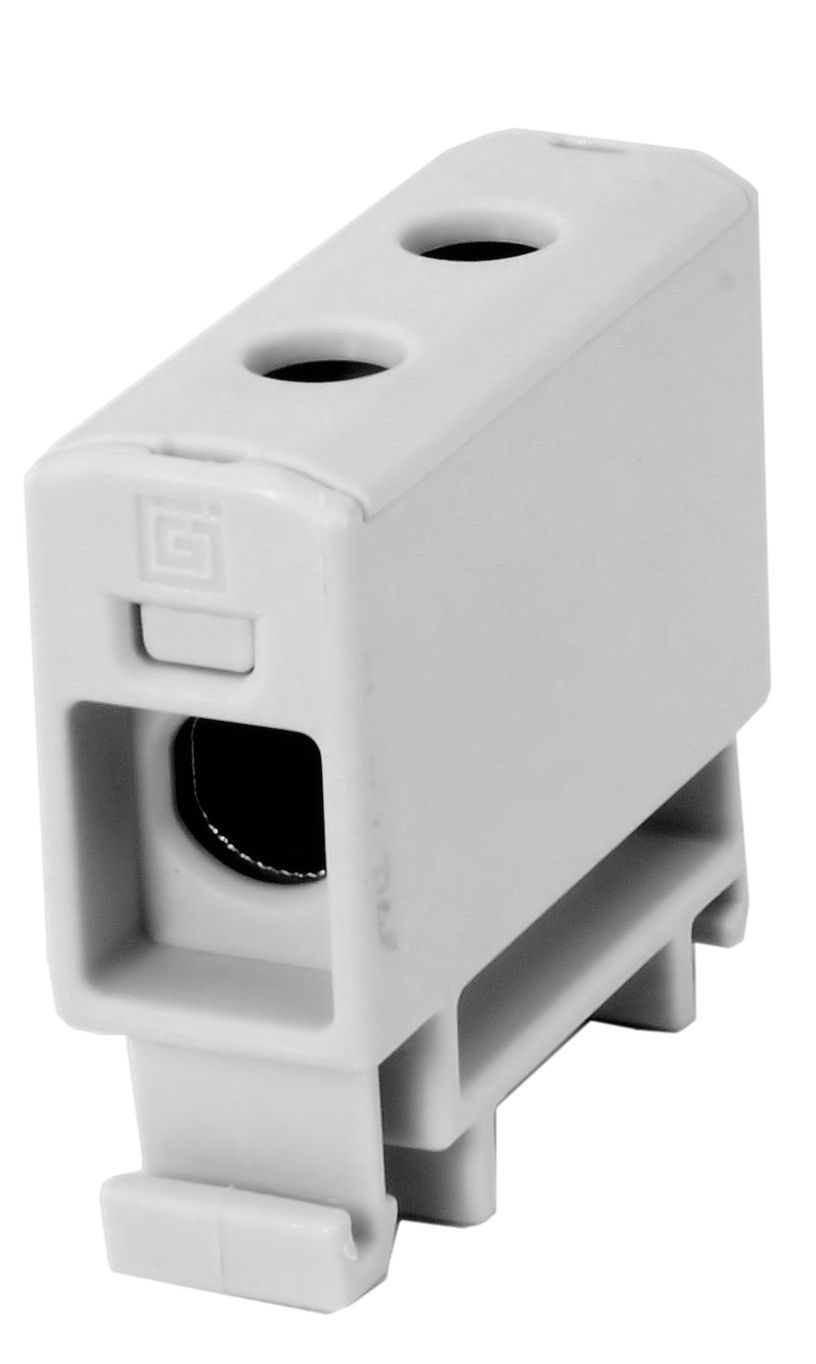

Rail Connector Through 1x AL/CU 2.5-35.0mm²

The rail connector through from the manufacturer Morek is a reliable solution for various industrial applications and electrical installations. Due to its universal properties, it works well in both energy sectors and residential installations.

Application

OTL connectors are universal connectors that allow for the connection of copper and aluminum wires without the need for adapters. Thanks to a special tinning technology, the wires are connected conveniently and safely. The connectors are suitable for any situation where a safe electrical connection is required, which may be exposed to current overloads.

Technical Data

• Short-circuit tested Class A – can be used before protection devices
• EN 61238 certification – confirmation of compatibility with copper and aluminum wires
• Flammability class V0 according to UL94
• Rated voltage: 1000V AC/DC
• Compliance with standards EN 60947, EN 61238
• Maximum cross-section range: from 16mm² to 300mm²
• Available color versions: gray, blue, yellow-green, red
