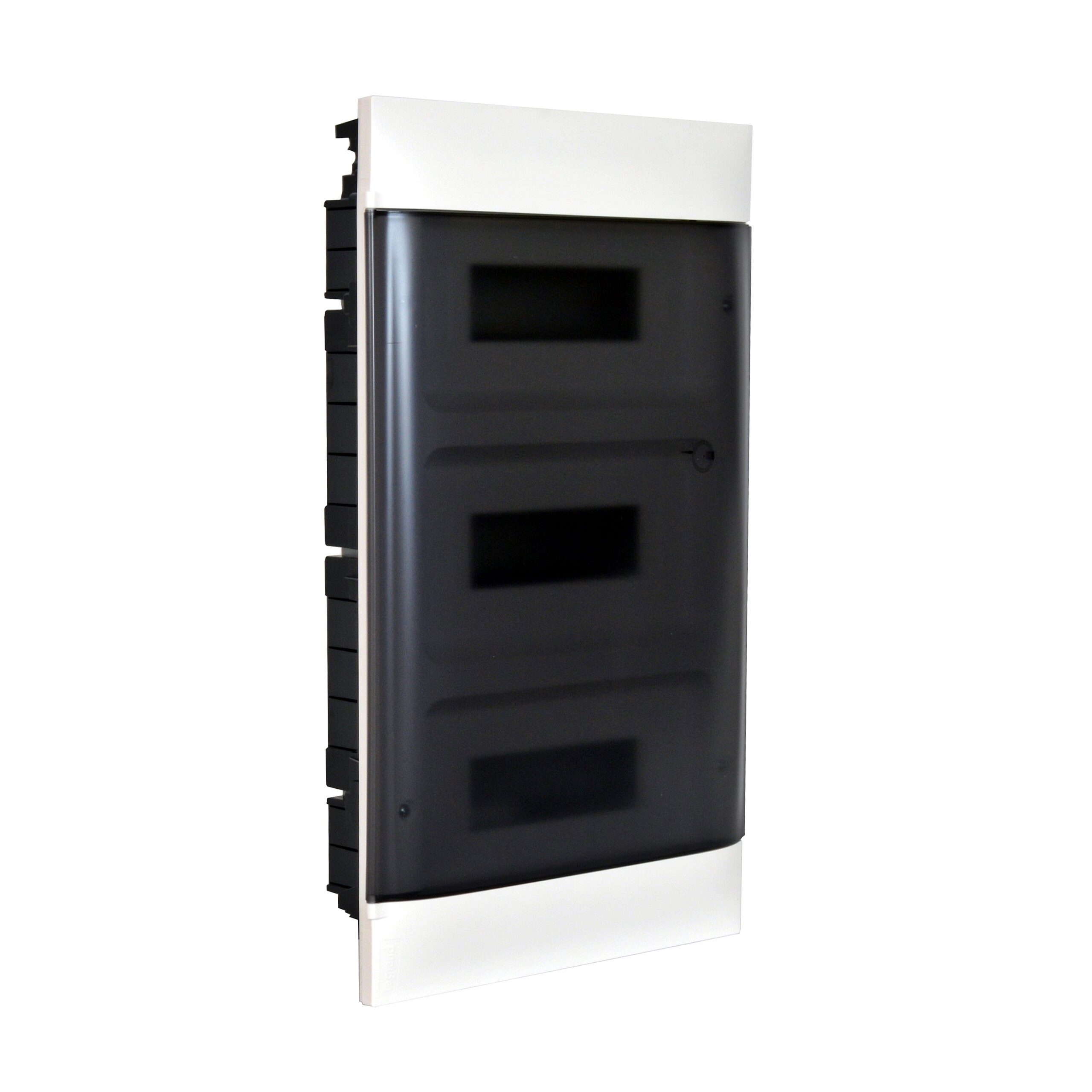

Practibox S Plastic Distribution Board PT 36M 3X 12M N+PE IP40 IK07
The Practibox S recessed distribution boards from Legrand Poland are the ideal solution for modern electrical installations, ensuring high quality and compliance with standards.
Application
The Practibox S recessed distribution boards are designed for use in various environments where electrical safety requirements are crucial. With a robust construction, they perform excellently in residential and commercial buildings.
Technical Data
- Standards: IEC/EN 60670-24 and IEC/EN 61439-3
- Degree of protection: IP 40
- Protection class: II
- Material: Insulating, self-extinguishing up to 650⁰C
- Number of rows: 3
- Number of modules per row: 12
- Total number of modules: 36
- Height: 535 mm
- Width: 328 mm
- Depth of the box: 72 mm
- Doors: Transparent, smoky
- Connection bars: N and PE
- N: 2 x (5×16 mm² + 5×10 mm²)
- PE: 1 x (14×16 mm² + 14×10 mm²)
