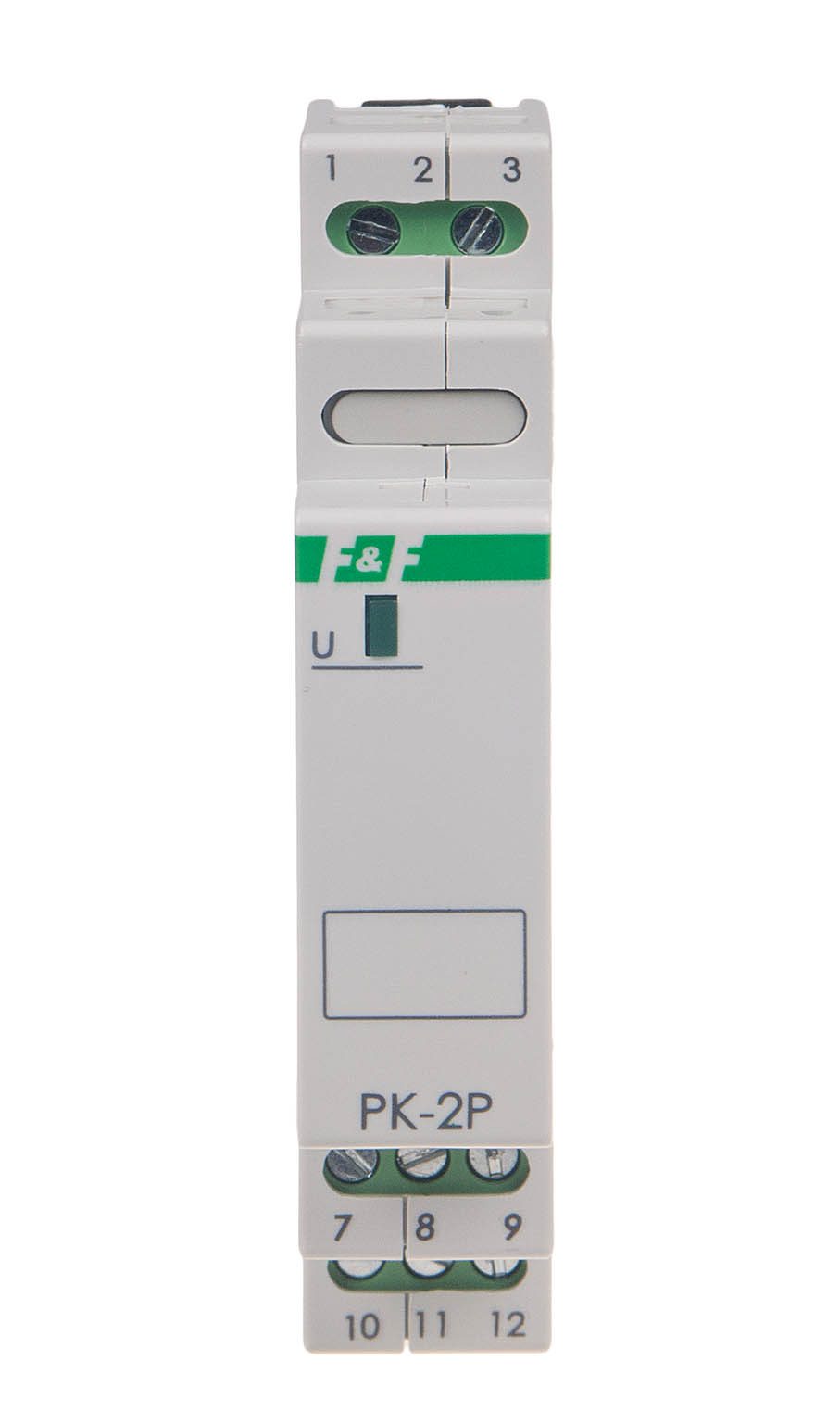

PK2P-24 Electromagnetic Relay 2x 8A 2P 1M 24V AC/DC
The PK2P-24 electromagnetic relay is a modern solution for automation, ideal for various applications in control systems.
Application
The relay is perfect for installations requiring reliable load switching. With a contact configuration of 2xNO/NC and high mechanical durability, it is suitable for industrial and construction applications.
Technical Data
- Manufacturer: FF FILIPOWSKI SPÓŁKA KOMANDYTOWA
- Contact configuration: 2x NO/NC
- Load current: 2 x 8 A
- Supply voltage: 24 V AC/DC
- Supply voltage tolerance: -15 ÷ 10 %
- Maximum current consumption: 25 mA
- Mechanical switching durability: min. 5×10⁶ cycles
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Mounting: on a 35 mm rail
- Protection degree: IP20
