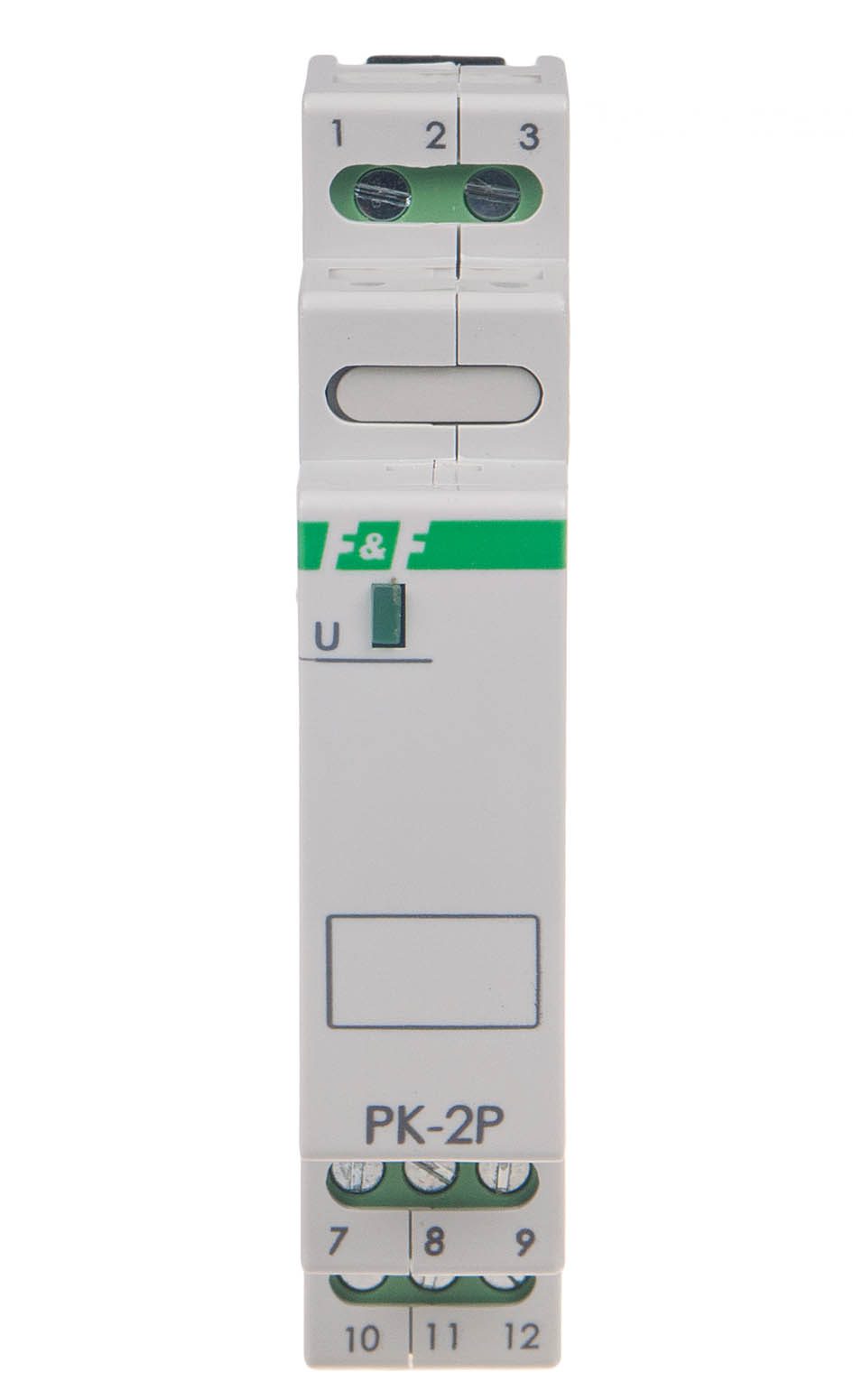

PK2P-12 ELECTROMAGNETIC RELAY 2X 8A 2P 1M 12V AC/DC
The PK2P-12 electromagnetic relay is a high-quality product that ensures reliable operation in applications requiring effective switching of electrical circuits.
Application
Ideal for installation in various industrial applications and building automation. With its easy installation on a DIN rail, the relay is perfect for control circuits.
Technical Data
- Contact configuration: 2xNO/NC
- Load current: 2 x 8 A
- Supply voltage: 12 V AC/DC
- Supply voltage tolerance: -15 ÷ 10 %
- Maximum load current AC-1: 2 x 8 A
- Actuating element: relay
- Contact separation: YES
- Maximum current consumption: 25 mA
- Mechanical switching durability: min. 5×10⁶ cycles
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Mounting: on a 35 mm rail
- Protection degree: IP20
