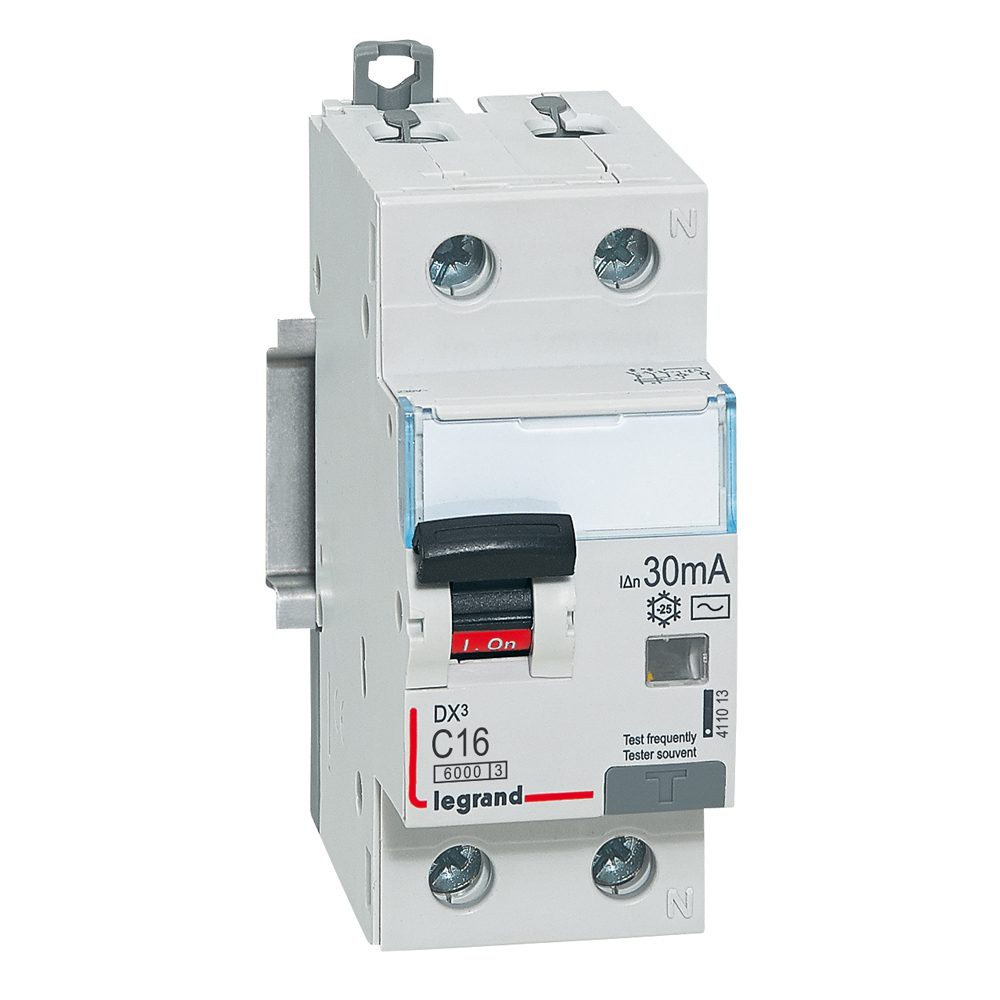

P312 DX3 C 16A/ 30MA/AC
The P312 DX3 C 16A residual current circuit breaker is the ideal solution for safe management of electrical energy in your facility.
Application
The DX³ P310 series residual current circuit breakers are designed to detect differential currents, ensuring user safety and protecting the electrical installation from damage.
Technical Data
- Rated short-circuit breaking capacity: 6000 A (IEC 61009-1)
- Type AC – detects sinusoidal alternating differential currents
- Type A – detects sinusoidal alternating and pulsating direct differential currents
- Compatibility with the HX³ Optimal Energy Distribution System up to 125 A
- Double-pole: 230 V~
- Characteristic C
- Rated differential current: 30 mA
- Rated current: 16 A
- Width in modules: 17.5 mm (2 modules)
- Mounting on TH35 rail
- Connection options via comb or pin rails
- Possibility to equip with auxiliary contacts, triggers, and drives from the DX³ series
- Gray switch lever
