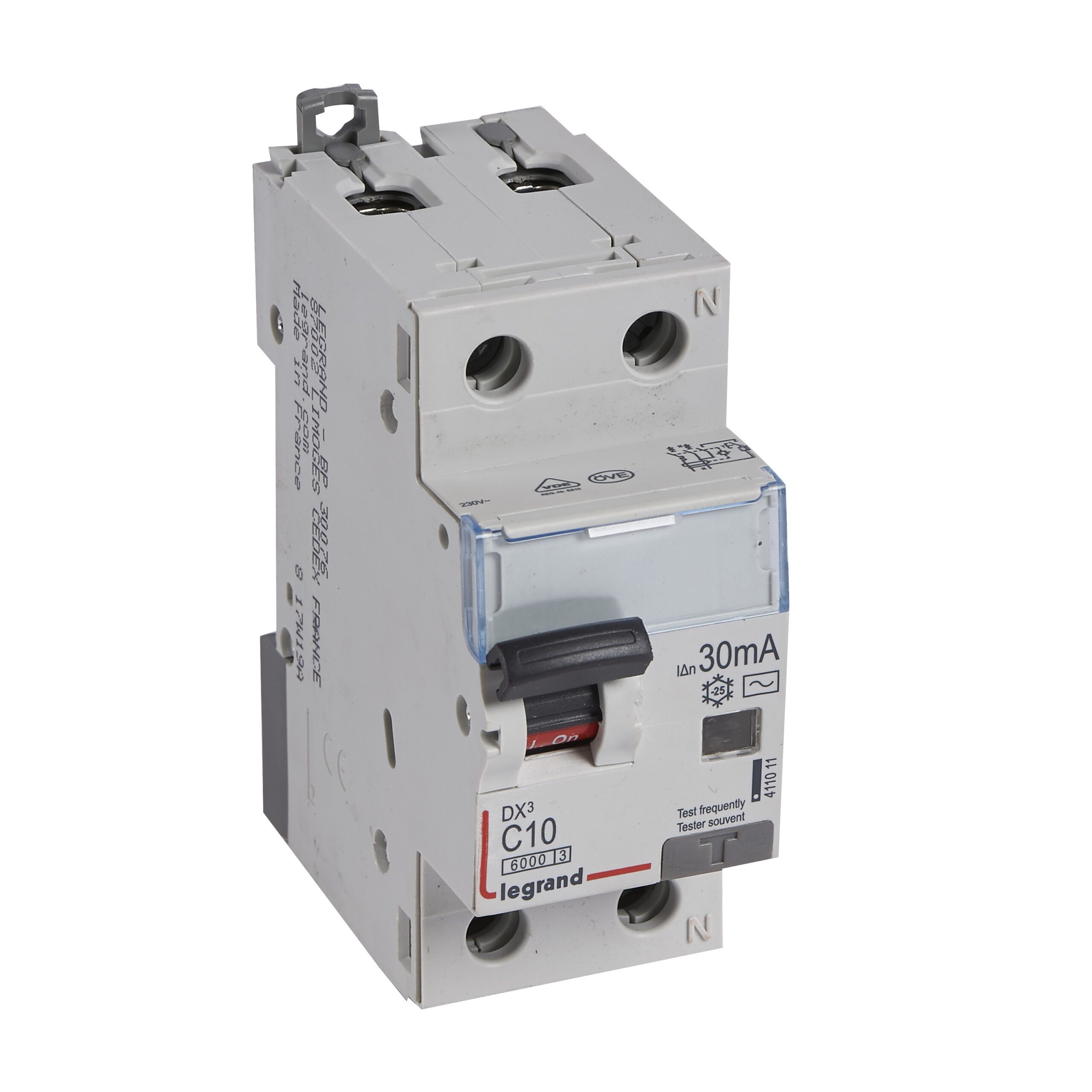

P312 DX3 C 10A/ 30MA/AC
The P312 DX3 C 10A 1P+N 2M 30MA AC 6KA residual current circuit breaker from Legrand Polska Sp. z o.o. is a top-quality product that ensures safety in electrical installations.
Application
Ideal for protection against the effects of short circuits and residual currents in electrical systems. Used in residential and industrial buildings to ensure user safety.
Technical Data
- Type: AC – detects alternating sinusoidal residual currents
- Rated breaking capacity: 6000 A according to IEC 61009-1
- Rated short-circuit capacity: 6 kA according to IEC 60947-2
- Characteristic: C
- Rated residual current: 30 mA
- Rated current: 10 A
- Width in modules: 17.5 mm (2 modules)
- Mounting: on TH35 rail
- Connection options: via comb rails or pin connections
- Equipment: with auxiliary contacts, triggers, and drives from the DX³ series
- Lever: gray color for switching on
