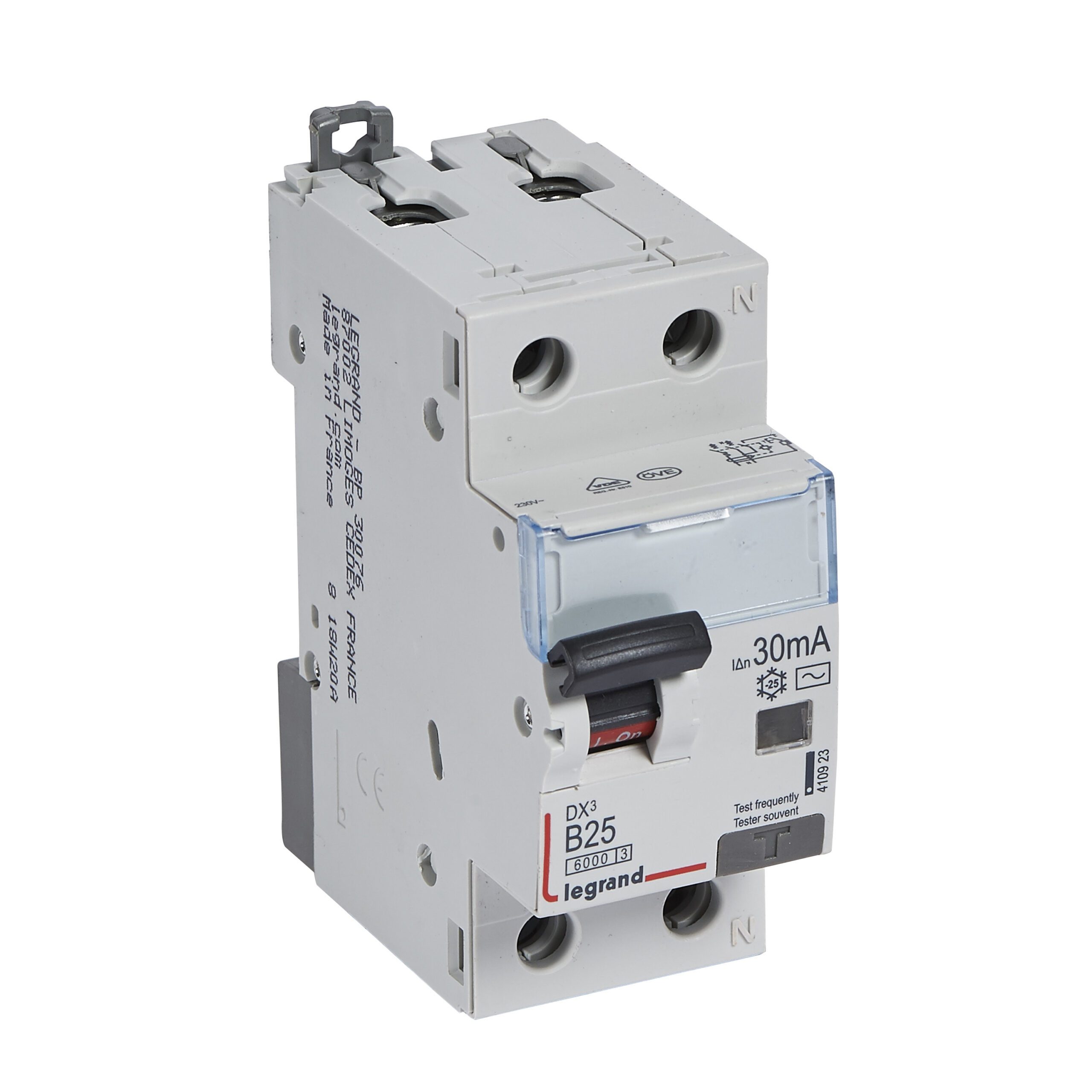

P312 DX3 B 25A/30MA/AC – Residual Current Circuit Breaker

The P312 DX3 B 25A/30MA/AC residual current circuit breaker is a high-quality product offered by LEGRAND, providing safety and protection against electric shock.

Application

DX³ series residual current circuit breakers are an ideal solution for use in electrical installations where there is a risk of differential currents. With various types of current detection, they effectively protect users and devices from hazards associated with electricity.

Technical Data

• Rated short-circuit breaking capacity: 6000 A (IEC 61009-1)
• Type AC – detects alternating sinusoidal differential currents
• Type A – detects alternating sinusoidal and pulsating direct differential currents
• Compatibility with HX³ System up to 125 A
• Two-pole 230 V~
• Characteristic B
• Rated differential current: 30 mA
• Rated current: 25 A
• Width in modules: 17.5 mm / 2
• Mounting on TH35 rail
• Connection options via comb or pin rails
• Possibility to equip with auxiliary contacts, triggers, and drives from the DX³ series
• Gray color operating lever
