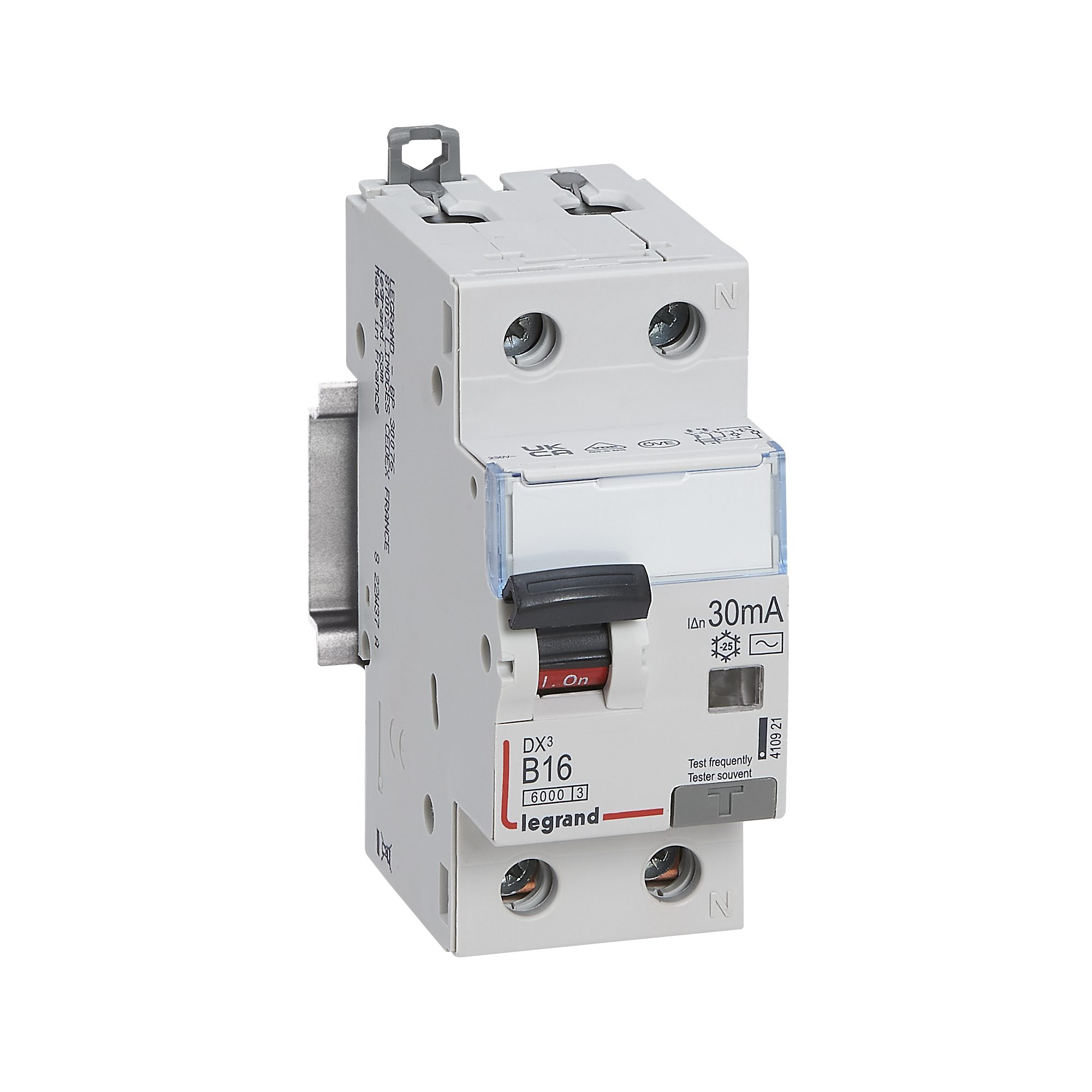

P312 DX3 B 16A/30MA/AC
The P312 DX3 B 16A 1P+N 2M 30MA AC 6KA residual current circuit breaker from LEGRAND POLSKA Sp. z o.o. is an excellent solution for protecting electrical installations.
Application
The P 310 series DX³ residual current circuit breakers are designed to ensure safety in the event of electrical installation failure. They detect residual currents and protect against electric shock.
Technical Data
- Rated short-circuit breaking capacity: 6000 A according to IEC 61009-1
- Type AC – detects alternating sinusoidal residual currents
- Type A – detects alternating sinusoidal and pulsating direct residual currents
- Compatible with the HX³ Optimal Energy Distribution System up to 125 A
- Two-pole 230 V~
- Type AC
- Characteristic B
- Rated residual current: 30 mA
- Rated current: 16 A
- Width in modules: 17.5 mm (2 modules)
- Mounting on TH35 rail
- Connection possible via comb busbars or pin busbars
- Can be equipped with auxiliary contacts, triggers, and drives from the DX³ series
- Switch lever in gray color
