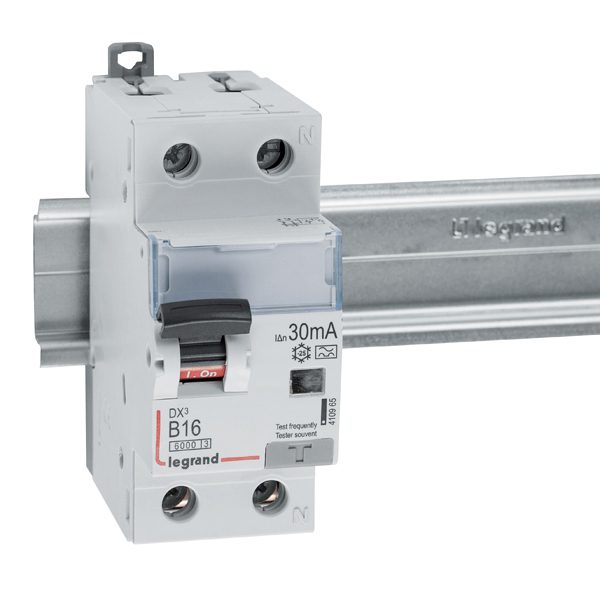

P312 DX3 B 16A/30MA/A RESIDUAL CURRENT CIRCUIT BREAKER
The B 16A 1P+N 2M 30MA A 6KA residual current circuit breaker from LEGRAND POLSKA Sp. z o.o. is a reliable solution for protection against residual currents.
Application
The P 310 series DX³ residual current circuit breakers are used in various electrical installations, ensuring safety and compliance with applicable standards.
Technical Data
- Rated short-circuit breaking capacity: 6000 A according to IEC 61009-1
- 6000 A according to IEC 60947-2
- Type AC: detects alternating sinusoidal residual currents
- Type A: detects alternating sinusoidal and pulsating direct residual currents
- Compatible with the HX³ Optimal Energy Distribution System up to 125 A
- Rated residual current: 30 mA
- Rated current: 16 A
- Width in modules: 17.5 mm – 2
- Mounting on TH35 rail
- Connection possible via comb busbars or pin busbars
- Can be equipped with auxiliary contacts, triggers, and drives from the DX³ series
- Switch lever in gray color
