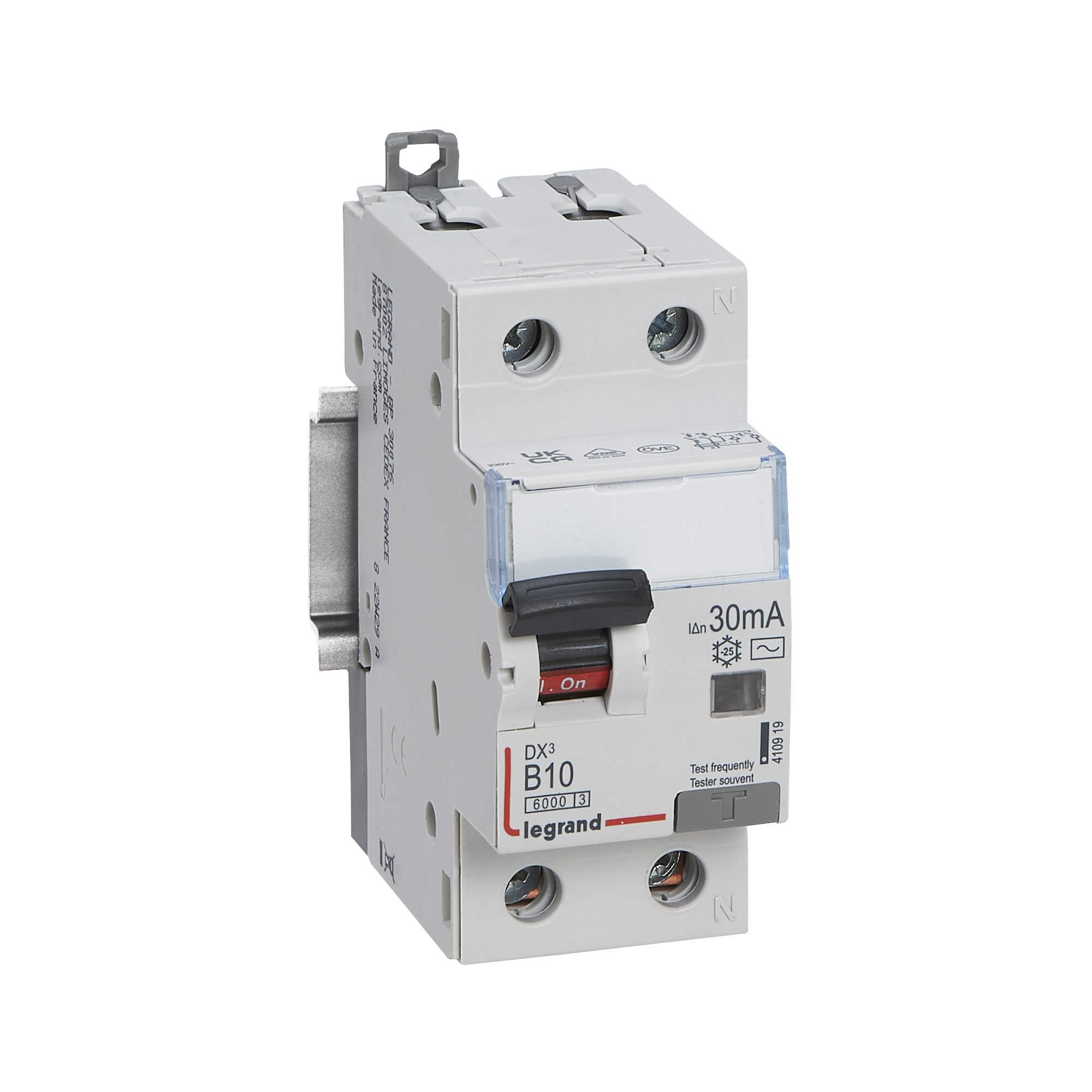

P312 DX3 B 10A/ 30MA/AC Residual Current Circuit Breaker
The P312 DX3 B 10A/30MA/AC residual current circuit breaker is a device designed by Legrand Poland that provides reliable protection against differential currents.
Application
The P 310 series DX³ residual current circuit breakers are used in various electrical installations, ensuring the safety of users in residential, commercial, and industrial facilities.
Technical Data
- Rated short-circuit breaking capacity: 6000 A according to IEC 61009-1
- Type AC – detects alternating sinusoidal differential currents
- Type A – detects alternating sinusoidal and pulsating direct differential currents
- Compatible with the HX³ Optimal Energy Distribution System up to 125 A
- Two-pole 230V~
- Characteristic B
- Rated residual current: 30 mA
- Rated current: 10 A
- Width in modules: 17.5 mm (2 modules)
- Mounting on TH35 rail
- Connection possible via comb or pin rails
- Can be equipped with auxiliary contacts, triggers, and drives from the DX³ series
- Gray operating lever
