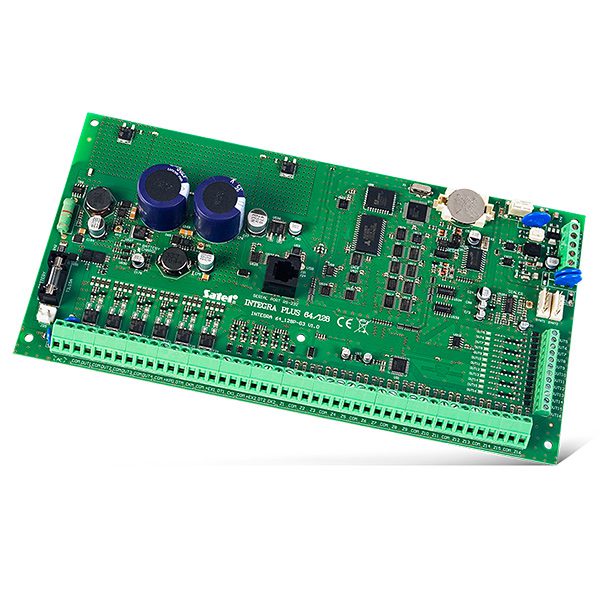

Alarm Control Panel Main Board for 16 to 64 Inputs and Outputs
With full compliance with the EN50131 Grade 3 requirements, the INTEGRA Plus series control panels are perfect for implementing advanced security systems in facilities with particularly high burglary risk, such as banks, jewelry stores, or public utility buildings. These panels feature extensive functionality, allowing them to be used for access control systems or even smart building systems.
Application
Description.
Technical Data
- full compliance with the EN50131 standards for Grade 3 devices
- built-in advanced power supply 2 A+1.5 A with extensive diagnostics
- supports up to 64 inputs with programmable parametric resistance and 3EOL line support
- USB port for programming via PC
- ability to divide the system into 32 zones and 8 partitions
- expandable to 64 programmable outputs
- communication buses for connecting manipulators and expansion modules
- built-in telephone communicator with monitoring, voice notification, and remote control functions
- alarm system operation using touch manipulators, LCDs, zone keypads, remotes, and proximity cards, as well as remotely via computer or mobile phone
- 64 independent timers for automatic control
- access control and home automation functions
- memory for 5631 events with printing capability
- supports up to 192+8+1 users
- software update capability via computer
- option to not report potential connection issues with the SATEL server as a failure
