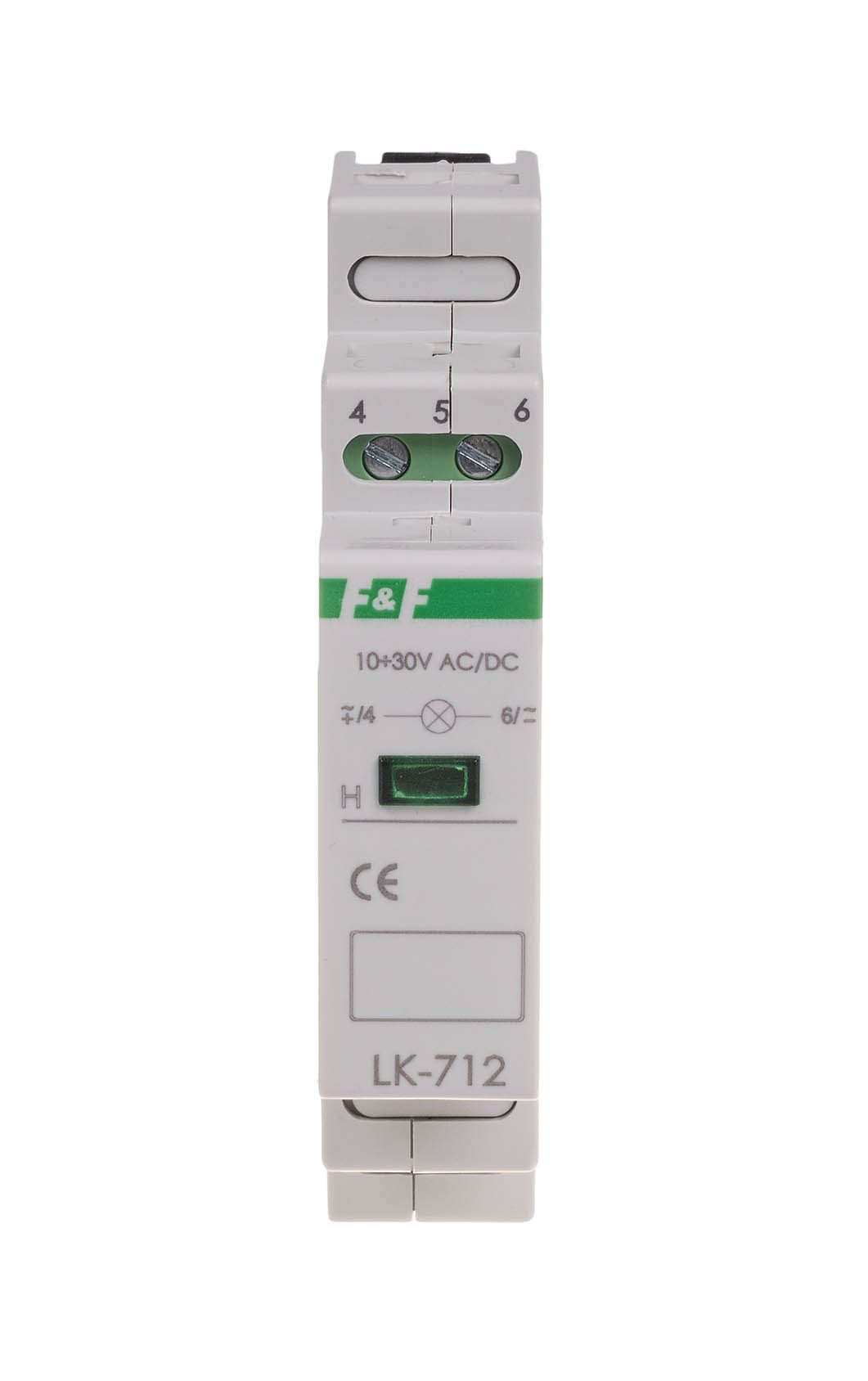

LK-712G Modular Signal Lamp 1M 10-30V AC/DC Green
Single green LED designed for optical signaling of voltage presence in an electrical circuit.
Application
The LK-712 control lamp is used for monitoring the supply voltage in the range of 10÷30 V AC/DC, providing visual confirmation of the electrical system’s operation.
Technical Data
- Supply voltage: 10÷30 V AC/DC
- Power control: 1 × LED Ø5 mm
- LED color: 1 x green
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
- Power consumption: 0.8 W
- Operating temperature: -25 ÷ 50 °C
- Dimensions: 1 module (18 mm)
- Mounting: on 35 mm rail
- Protection degree: IP20
