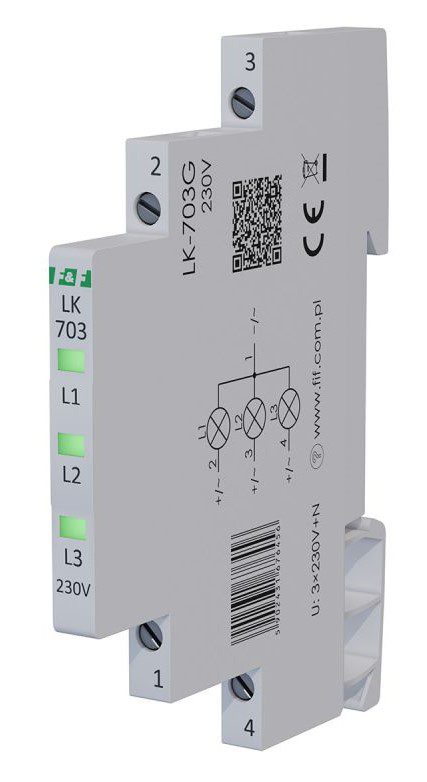

LK-703G Modular Signal Lamp 3x LED 0.3m 230V Green
The LK-703G control lamp is used for optical signaling of voltage presence in three phases of a 3-phase network.
Application
The presence of voltage in the phase is indicated by the illumination of the corresponding LED, allowing for easy monitoring of the power status. The small size of the housing ensures that the lamp fits into any electrical distribution board, saving space.
Technical Data
- Supply Voltage: 3×230 V+N
- Power Control: 3 x LED
- LED Colors: 3 x green
- Rated Current: 1 mA/channel
- Connection: screw terminals 2.5 mm²
- Tightening Torque: 0.4 Nm
- Power Consumption: 0.15 W/channel
- Operating Temperature: -30÷50°C
- Dimensions: 1/3 module (6.2 mm)
- Mounting: on 35 mm rail
- Protection Degree: IP20
