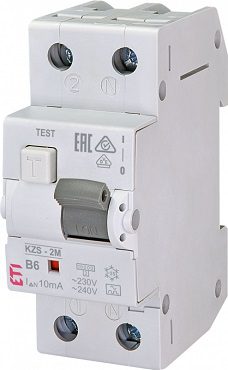

KZS-2M B 16A/30MA/AC Residual Current Circuit Breaker B 16A 1P+N 2M 30MA AC 10KA

The residual current circuit breaker with overcurrent protection offers high-quality protection against electric shock and fire hazards.

Application

Residual current circuit breakers with overcurrent protection are used to protect against electric shock and to safeguard devices from fire hazards. Used in various electrical networks, they provide effective protection against short circuits and overloads.

Technical Data

• Catalog number: 002173104
• Article symbol: KZS-2M AC B16/0.03
• Class name: Residual current circuit breaker with overcurrent protection
• Rated residual current: 30 mA
• Rated current: 16 A
• Type: AC
• Tripping characteristic: B
• Short-circuit current: 10 kA
• Rated voltage AC: 240 V
• Rated frequency: 50/60 Hz
• Tripping time: instantaneous
• Ambient temperature: -25 to 40 °C
• Number of poles: 2
• Number of modules: 2
• Wire connection: 1 to 25 mm²
• Neutral pole side: right
• Protection degree IP: IP20
• Function: RCBO
