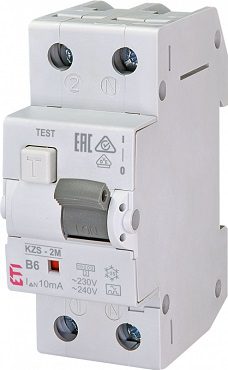

KZS-2M B 16A/30MA/A

Residual current circuit breaker with overcurrent protection, which provides protection against electric shock and safeguards devices against fire hazards.

Application

KZS residual current circuit breakers are used in TN-S, TN-C-S, TT, and IT networks, offering protection in electrical circuits against short circuits and overloads. They are distinguished by their ability to respond to direct or indirect contact with live parts.

Technical Data

• Catalog number: 002173204
• Article symbol: KZS-2M A B16/0.03
• Class name: Residual current circuit breaker with overcurrent protection
• Rated residual current: 30 mA
• Rated current: 16 A
• Type: A
• Tripping characteristic: B
• Short-circuit current: 10 kA
• Rated AC voltage: 240 V
• Rated frequency: 50/60 Hz
• Tripping time: instantaneous
• Ambient temperature: -25 to 40 ˚C
• Number of poles: 2
• Number of modules: 2
• Wire connection capacity: 1 to 25 mm²
• Neutral pole side: right
• IP protection rating: IP20
• Function: RCBO
