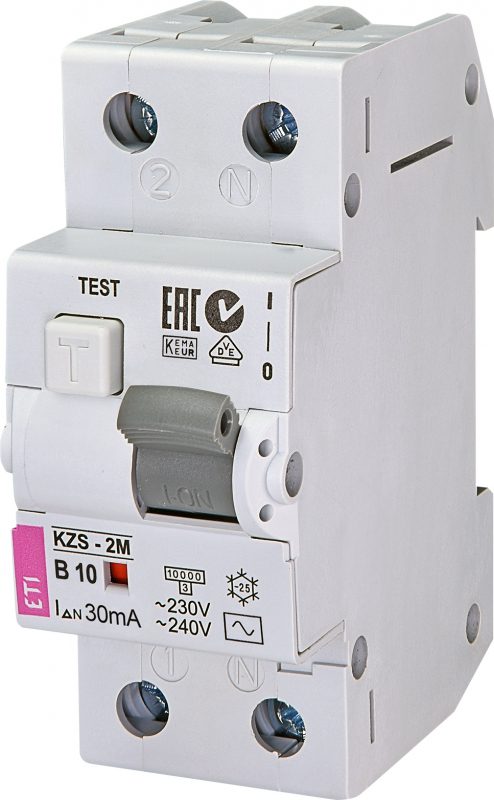

KZS-2M B 10A/30MA/AC Residual Current Circuit Breaker B10A 1P+N 2M 30MA AC 10KA
The KZS-2M residual current circuit breaker with overcurrent protection is a reliable device that protects against electric shock and safeguards equipment from fire hazards.
Application
The device is used in TN-S, TN-C-S, TT, and IT networks, providing protection against short circuits and overloads. It also allows users to test the functionality of the breaker.
Technical Data
- Catalog number: 002173102
- Article symbol: KZS-2M AC B10/0.03
- Class name: Residual current circuit breaker with overcurrent protection
- Rated residual current: 30 mA
- Rated current: 10 A
- Type: AC
- Tripping characteristic: B
- Short-circuit current: 10 kA
- Rated AC voltage: 240 V
- Rated frequency: 50/60 Hz
- Tripping time: instantaneous
- Ambient temperature: -25 to 40 °C
- Number of poles: 2
- Number of modules: 2
- Cable connection capacity: 1 to 25 mm²
- N pole side: right
- IP protection rating: IP20
- Function: RCBO (residual current circuit breaker with overcurrent protection)
