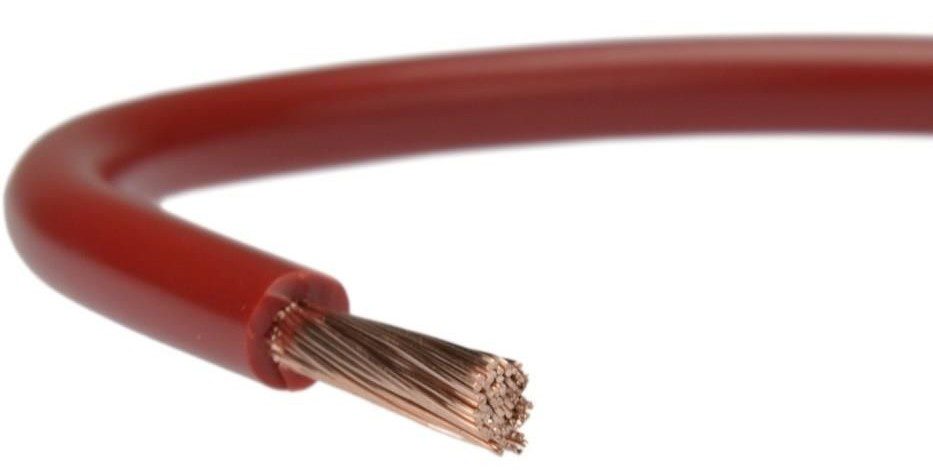

H07V-K LGY 6.0 Red Flexible Single-Core Cable 450/750V Class 5
H07V-K LGY 6.0 is a flexible single-core cable that ensures high quality and compliance with important standards, making it an ideal solution for various electrical applications.
Application
The H07V-K LGY cable is mainly used in installations both in buildings and in industrial applications. It is perfect for places where a flexible wiring solution is required, such as in machines, devices, and electrical tools.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm² and above
- Conductor: flexible copper wires compliant with IEC 60228, Class 5
- Insulation: PVC, Temp.: 70°C
- Cables should be tested as specified in EN 50525
- The electrical resistance of the wires should be tested according to IEC 60228
- Voltage test: no insulation breakdown will occur, the applied voltage and duration will comply with EN 50525
- Fire resistance test according to IEC 60332 part 1
- Detailed technical data:
- Size (mm²): 1.5; Max. conductor DC resistance at 20 °C: 13.3 Ω/Km; Diameter (mm): 2.9; Weight (kg/km): 19; Min. bending radius (mm): 23.2
- Size (mm²): 2.5; Max. conductor DC resistance at 20 °C: 7.98 Ω/Km; Diameter (mm): 3.5; Weight (kg/km): 30; Min. bending radius (mm): 28
- Size (mm²): 4; Max. conductor DC resistance at 20 °C: 4.95 Ω/Km; Diameter (mm): 3.7; Weight (kg/km): 34; Min. bending radius (mm): 29.6
- Size (mm²): 6; Max. conductor DC resistance at 20 °C: 3.3 Ω/Km; Diameter (mm): 4.6; Weight (kg/km): 60; Min. bending radius (mm): 36.8
- Size (mm²): 10; Max. conductor DC resistance at 20 °C: 1.91 Ω/Km; Diameter (mm): 5.9; Weight (kg/km): 106; Min. bending radius (mm): 47.2
- Size (mm²): 16; Max. conductor DC resistance at 20 °C: 1.21 Ω/Km; Diameter (mm): 7; Weight (kg/km): 160; Min. bending radius (mm): 56
