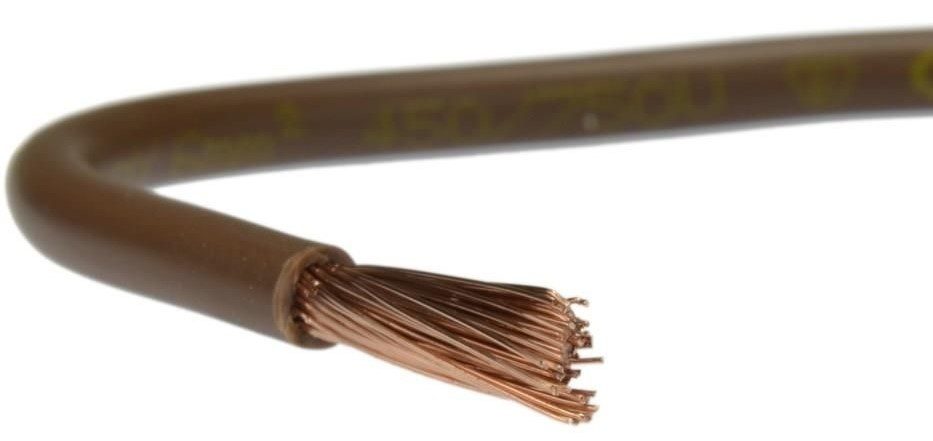

H07V-K LGY 6.0 Brown Single-Core Flexible Cable 450/750V Class 5
The H07V-K LGY single-core cable with a cross-section of 6.0 mm², produced by Elsewedy Electric, is ideal for a wide range of applications in electrical installations.
Application
The H07V-K LGY cable is used in installations where flexibility and high conductivity are crucial. Thanks to the use of the highest quality copper, the cable maintains appropriate resistance and safety in various conditions.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm² and above
- Conductor: flexible copper wires compliant with IEC 60228, Class 5
- Insulation: PVC, operating temperatures up to 70°C
- Cables should be tested according to EN 50525
- The electrical resistance of the wires should be tested according to IEC 60228
- Voltage test: compliance with EN 50525
- Fire resistance test according to IEC 60332 part 1
- Technical data presented in a table for different cable sizes
