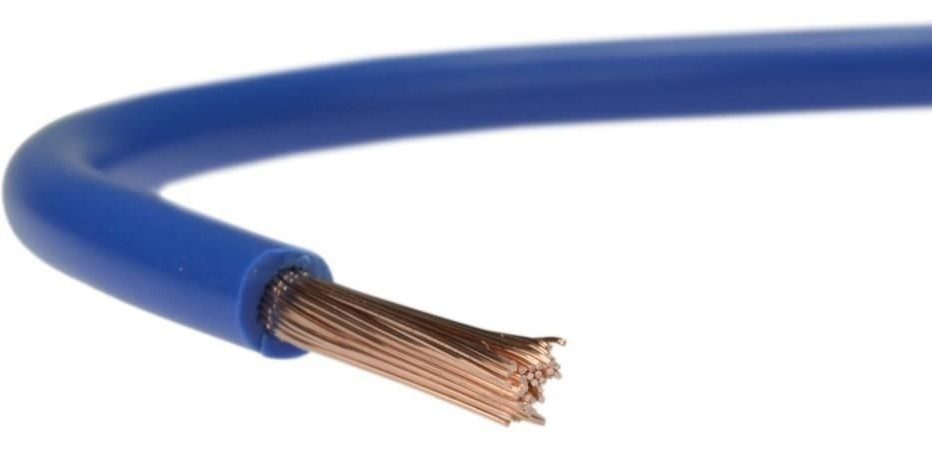

H07V-K LGY 6.0 BLUE SINGLE-CORE FLEXIBLE CABLE 450/750V CLASS 5
The H07V-K LGY 6.0 is a high-quality single-core flexible cable, ideal for use in electrical and machinery installations in industrial environments.
Application
The H07V-K cables are designed for permanent electrical installation. Thanks to the flexible copper conductors of class 5, they are perfect for both indoor and outdoor use, provided they are protected from UV radiation.
Technical Data
- Manufacturer: ELSEWEDY ELECTRIC
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V
- Conductor type: flexible copper conductors compliant with IEC 60228
- Insulation: PVC, operating temperature up to 70°C
- Testing: Cables should be tested according to EN 50525
- Electrical resistance: Should be tested according to IEC 60228
- Voltage test: Insulation breakdown may not occur, according to EN 50525
- Fire resistance test: According to IEC 60332 part 1
Technical data: Cable size, maximum resistance, diameter, weight, and minimum bending radius for various cross-sections are available in the table below:
| Size (mm2) | Max. Conductor DC Resistance at 20 °C (Ω/Km) | Diameter (mm) | Weight (kg/km) | Min. Bending Radius (mm) |
|---|---|---|---|---|
| 1.5 | 13.3 | 2.9 | 19 | 23.2 |
| 2.5 | 7.98 | 3.5 | 30 | 28 |
| 4 | 4.95 | 3.7 | 34 | 29.6 |
| 6 | 3.3 | 4.6 | 60 | 36.8 |
| 10 | 1.91 | 5.9 | 106 | 47.2 |
| 16 | 1.21 | 7 | 160 | 56 |
