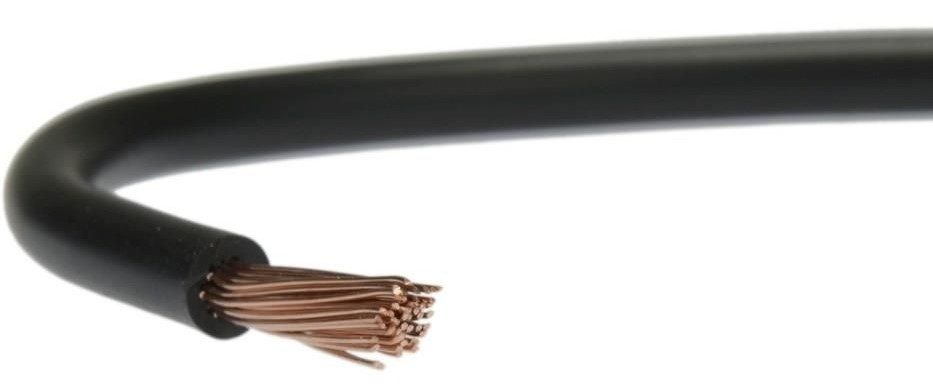

H07V-K LGY 16 Black Single-Core Flexible Cable 450/750V Class 5
H07V-K LGY 16 is a flexible single-core cable, ideal for applications requiring high quality and great flexibility.
Application
The H07V-K LGY 16 cable is intended for electrical installations in buildings as well as in industrial facilities, in accordance with applicable standards. Thanks to the use of copper in the conductor, the cable features excellent conductive properties.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm2 and above
- Type: flexible copper cables compliant with IEC 60228 standard
- Insulation: PVC, operating temperature up to 70°C
- Cables should be tested as specified in EN 50525
- Electrical tests according to IEC 60228 standard
- Voltage test: compliant with EN 50525
- Fire resistance test according to IEC 60332 part 1
