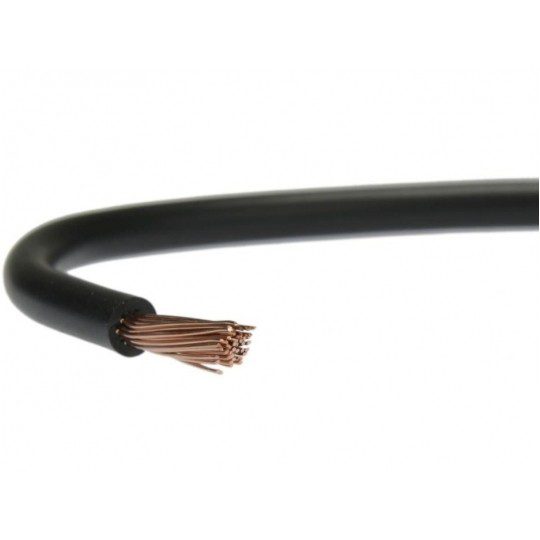

H07V-K LGY 10 ŻO Single-Core Flexible Cable 450/750V Drum Class 5
High-quality single-core cable, ideal for applications requiring flexibility and reliability at 450/750V.
Application
The H07V-K LGY cable has been designed according to DIN EN 50525-2-31 standards, making it suitable for a wide range of applications in electrical installations. Its flexible copper provides a high level of user comfort and ease of installation.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm2 and above
- Conductor type: flexible copper wires compliant with IEC 60228, Class 5
- Insulation: PVC, Temp.: 70°C
- Cables tested according to EN 50525
- Electrical resistance: tested according to IEC 60228
- Voltage test: compliant with EN 50525, no insulation breakdown
- Fire resistance test: according to IEC 60332 part 1
- Cable technical data:
- Size (mm2), Max. Conductor DC Resistance at 20 °C (Ω/Km), Diameter (mm), Weight (kg/km), Min. Bending Radius (mm)
