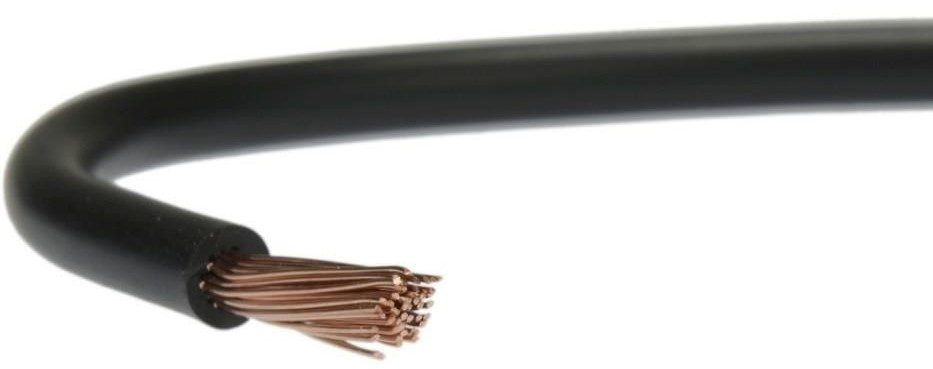

H07V-K LGY 10 BLACK SINGLE-CORE FLEXIBLE CABLE 450/750V CLASS 5
H07V-K LGY 10 is a flexible single-core cable that meets high standards of quality and safety. Ideal for use in various electrical installations.
Application
The cable is used in electrical installations, particularly where flexibility and resistance to various weather conditions are required. It can be used in residential and industrial buildings.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm² and above
- Conductor type: flexible copper wires compliant with IEC 60228, Class 5
- Insulation: Type: PVC, Temp.: 70°C
- Cables should be tested as specified in EN 50525
- The electrical resistance of the wires should be tested according to IEC 60228
- Voltage test compliant with EN 50525
- Fire resistance test according to IEC 60332 part 1
- Technical data.
