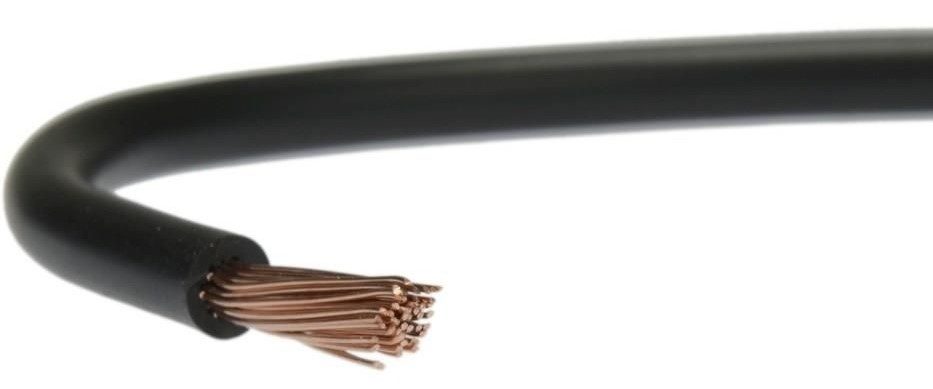

H07V-K LGY 10 Black Single-Core Flexible Cable 450/750V Drum Class 5
H07V-K LGY 10 is a flexible single-core cable that ensures high quality and reliability in electrical applications.
Application
This copper cable complies with European standards and is ideally suited for installations in buildings as well as various industrial applications. Its flexibility and resistance to high temperatures make it an ideal solution in challenging conditions.
Technical Data
- Design standards: DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011
- Voltage: 450/750 V for 1.5 mm2 and above
- Type: flexible copper cables compliant with IEC 60228, Class 5
- Insulation: PVC, Temp.: 70°C
- Cables should be tested according to EN 50525.
- The electrical resistance of the conductors should be tested according to IEC 60228.
- Voltage test: no breakdown of insulation will occur, applied voltage and duration will comply with EN 50525.
- Fire resistance test according to IEC 60332 part 1.
- Technical specifications:
- Size (mm²) | Max. Conductor DC Resistance at 20 °C (Ω/Km) | Diameter (mm) | Weight (kg/km) | Min. Bending Radius (mm)
- 1.5 | 13.3 | 2.9 | 19 | 23.2
- 2.5 | 7.98 | 3.5 | 30 | 28
- 4 | 4.95 | 3.7 | 34 | 29.6
- 6 | 3.3 | 4.6 | 60 | 36.8
- 10 | 1.91 | 5.9 | 106 | 47.2
- 16 | 1.21 | 7 | 160 | 56
