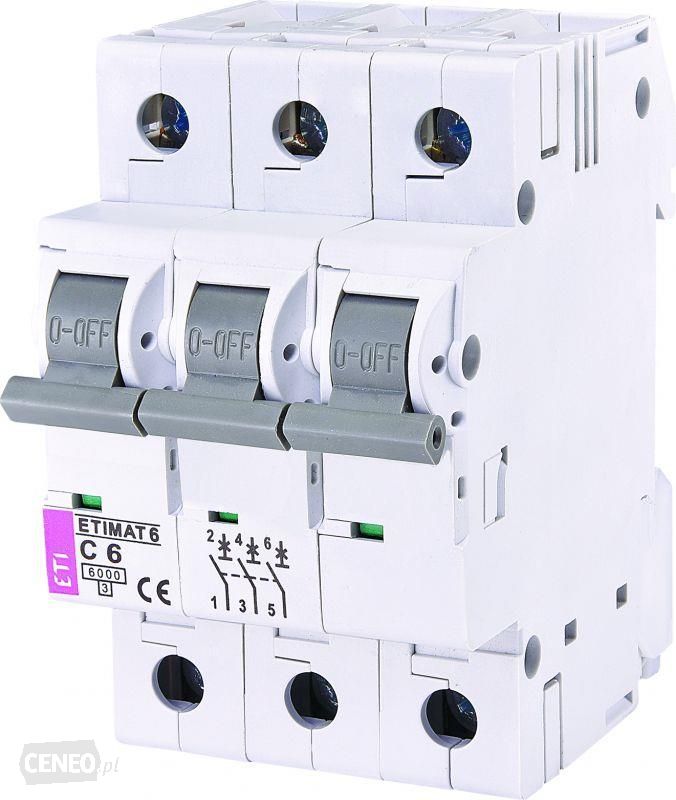

ETIMAT 6 Circuit Breaker C 6A 3P 3M 6KA
ETIMAT 6 circuit breakers are used as protection for electrical installations in residential, public utility, and industrial buildings. They provide reliable protection against short circuits and overloads in the protected electrical circuits.
Application
Circuit breakers are used to protect electrical installations from the effects of short circuits and overloads. Ideal for use in residential buildings as well as in public utility facilities and in industry.
Technical Data
- Catalog number: 002145512
- Article symbol: ETIMAT 6 3p C6
- Class name: Circuit breaker
- Rated current [A]: 6
- Tripping characteristic: C
- Number of poles: 3
- Short-circuit current [kA]: 6
- Rated voltage AC [V]: 230/400
- Rated voltage DC [V]: 60
- Rated frequency [Hz]: 50/60
- Voltage Uimp [kV]: 6
- Degree of protection IP: IP20
- Ambient temperature [˚C]: -25 to +55
- Clearance [mm]: >3
- Wire connection [mm2]: 1 – 25
- Working position: any
- Standards: IEC/EN 60898-1, IEC 60947-2
- Function: MCB
