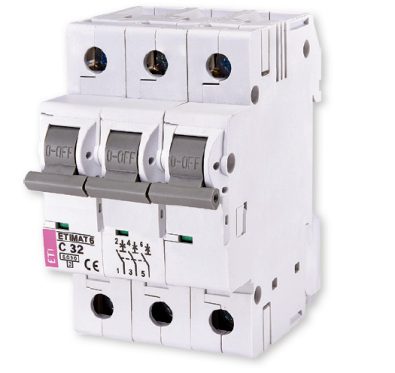

ETIMAT 6 Circuit Breaker C 32A 3P 3M 6KA
The ETIMAT 6 circuit breaker is a reliable solution for protecting electrical installations, ideal for residential, public utility, and industrial facilities.
Application
ETIMAT 6 circuit breakers serve as protection against short circuits and overloads in electrical circuits, ensuring safety and stability of electrical installation operation.
Technical Data
- Catalog number: 002145519
- Article symbol: ETIMAT 6 3p C32
- Class name: Circuit breaker
- Rated current [A]: 32
- Tripping characteristic: C
- Number of poles: 3
- Short-circuit current [kA]: 6
- Rated AC voltage [V]: 230/400
- Rated DC voltage [V]: 60
- Rated frequency [Hz]: 50/60
- Voltage Uimp [kV]: 6
- Degree of protection IP: IP20
- Ambient temperature [˚C]: -25 to +55
- Clearance [mm]: >3
- Wire connection [mm2]: 1 – 25
- Operating position: any
- Standards: IEC/EN 60898-1, IEC 60947-2
- Function: MCB
