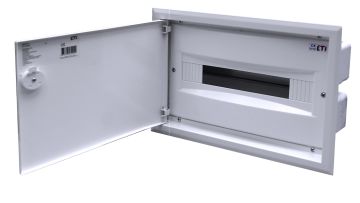

ERP18-1 Plastic Distribution Board PT 18M 1X 18M N+PE IP40 IK08

The ERP18-1 plastic distribution board is a reliable solution for mounting modular equipment in construction, providing the appropriate level of protection for the equipment.

Application

Flush-mounted interior enclosures are used in residential construction, offices, schools, and industrial construction for mounting modular equipment to ensure the appropriate level of protection for the equipment (IP40) and class II protection.

Technical Data

• Catalog number: 001101208
• Article symbol: ERP18-1
• Protection class: II
• Mounting method: flush-mounted
• Rated current [A]: 63
• Rated voltage [V]: 400
• IP protection rating: IP40
• Mechanical resistance IK: IK08
• Number of modules (total/in row): 18/18
• Frame size (number of rows): 1
• Doors (material, color): Metal, white (RAL9016)
• Enclosure (material, color): Plastic, white
• Number of PE/N terminals: 11/11
• Operating temperature range [°C]: -25 to +60
• Glow wire test [°C]: 650
