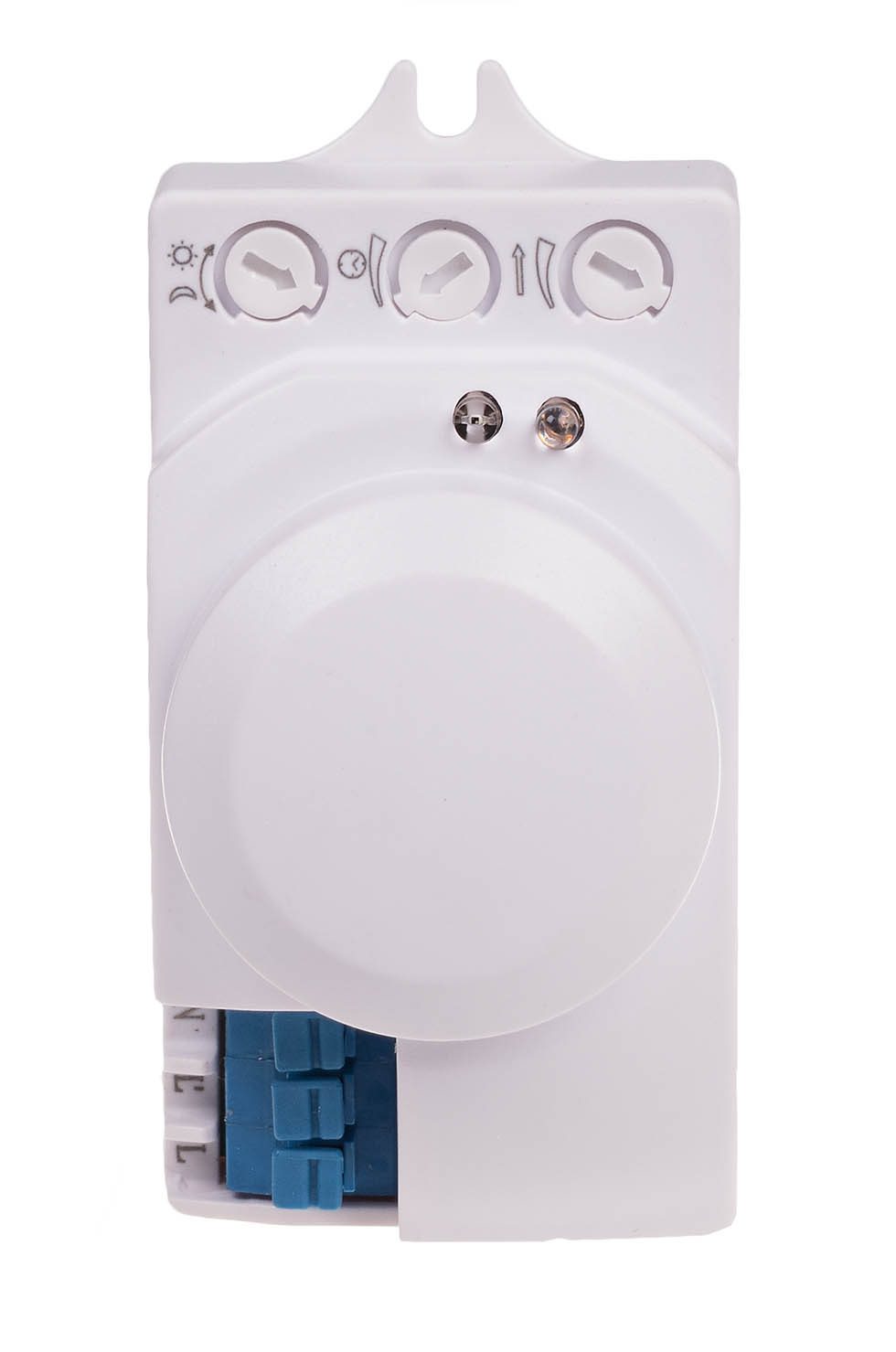

DRM-01-24V WHITE MICROWAVE MOTION/PRESENCE SENSOR

Microwave motion sensor for automatic lighting activation in the presence of an object. Ideal for surface mounting.

Application

The sensor is used for automatic, timed lighting activation in places such as corridors, yards, approaches, driveways, and garages. With the presence sensor function, you gain greater convenience and energy savings.

Technical Data

• Supply voltage: 24 V AC
• Maximum load: 5 A
• Trigger threshold: 2÷2000 Lx (adjustable)
• Response delay: < 1 s
• Frequency: 5.8 GHz
• Maximum radiation power: 10 mW
• Detection range: 1÷10 m (adjustable for a height of 2.5 m)
• Receiver activation time: 5 s ÷ 12 min (adjustable)
• Horizontal detection field: 360°
• Type of detection: microwave radiation
• Connection: terminals 1mm²
• Tightening torque: 0.25 Nm
• Power consumption: 0.9 W
• Operating temperature: -25 ÷ 50 °C
• Dimensions: 46 × 93 × 42 mm
• Mounting: for built-in installation
• Protection class: IP20
