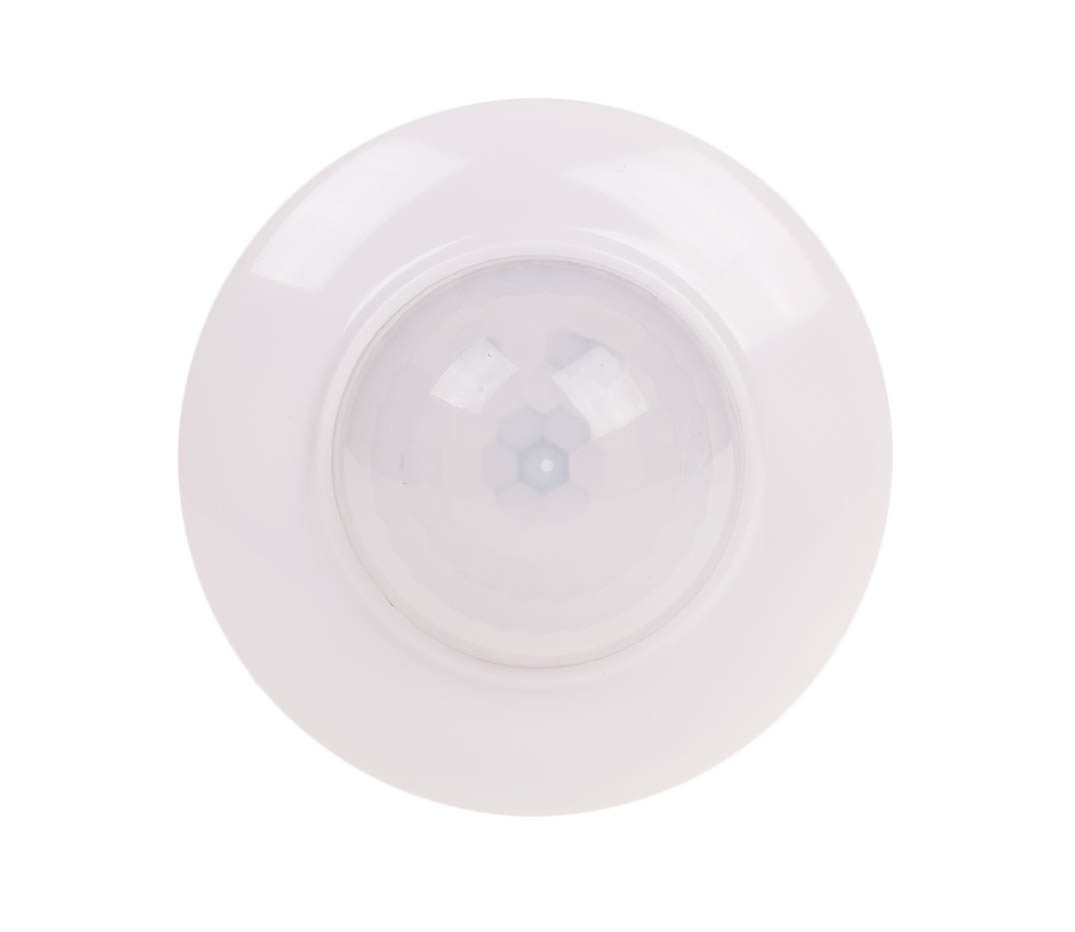

DR-07 WHITE CEILING MOTION SENSOR 360°
Miniature motion sensor for automatic lighting activation, ideal for installation in various spaces.
Application
The motion sensor is used for automatic, timed lighting activation when a person or another object appears in places such as corridors, yards, approaches and driveways, garages, etc.
Technical Data
- Dimensions: Ø50mm, h:52mm; recess: Ø39 mm, h:35 mm; mounting hole: Ø40mm
- IP20
- Supply voltage: 230 V AC
- Maximum load current AC-1: 5 A
- Turn-off time: 3 s ÷ 9 min (±2 min)
- Dusk activation threshold: 10÷2000 Lx
- Motion detection: 0.6÷1.5 m/s
- Horizontal detection field: 360°
- Max. adjustable detection radius: 4 m (at a mounting height of 2.5 m)
- Mounting height: 2.5 m ÷ 3.5 m
- Type of detection: infrared radiation
- Connection: screw terminals 1.0 mm²
- Tightening torque: 0.25 Nm
- Power consumption in standby/operating mode: 0.10 W/0.45 W
- Operating temperature range: -10÷40°C
