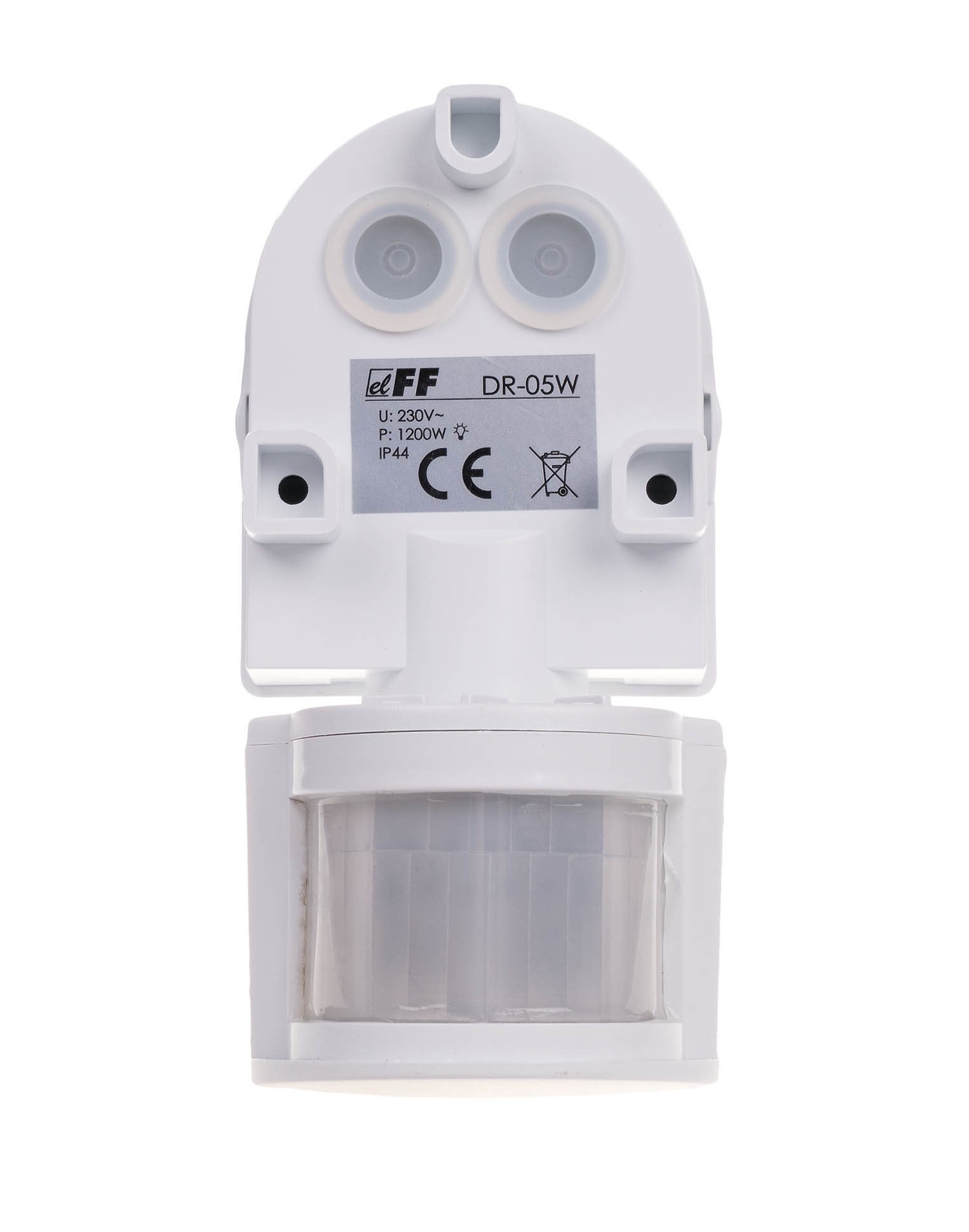

DR-05W White Motion Sensor NT Wall-mounted 180°
The DR-05W motion sensor is an excellent solution for automatically lighting up spaces when a person or moving object appears within its range.
Application
Ideal for use in hallways, yards, walkways and driveways, garages, and other places where lighting automation is required in response to movement.
Technical Specifications
- Mounting: surface-mounted
- Protection class: IP44
- Color: white
- Power supply voltage: 230 V AC
- Turn-off time: 10 s ± 3 s ÷ 10 min ± 2 min
- Motion detection: 0.6÷1.5 m/s
- Horizontal detection range: 0°÷180°
- Vertical detection range: 0°÷90°
- Max. adjustable detection radius: 5÷12 m (h: 2.5 m, Temp. ˂ 24 °C)
- Sensor mounting height: 1.8÷2.5 m
- Head rotation range: horizontal 180° / vertical 90°
- Detection type: infrared radiation
- Connection: screw terminals 1.5 mm²
- Tightening torque: 0.3 Nm
- Power consumption: 0.5 W
- Operating temperature: -20÷40°C
- Dimensions (head horizontal): 70 x 205 x 45 mm; (head vertical): 70 x 140 x 110 mm
