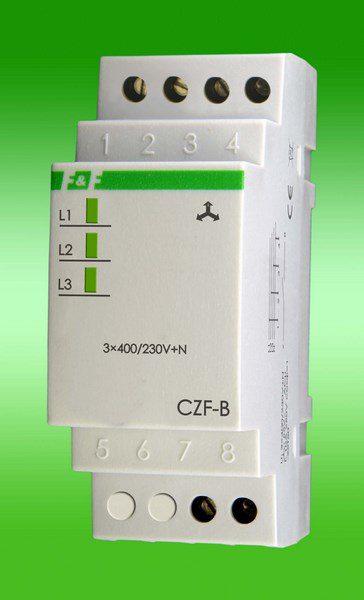

CZF-B PHASE LOSS AND ASYMMETRY SENSOR 10A 1Z 2M 3X400/230V+N AC

Phase loss sensor that protects electric motors from damage due to voltage loss or asymmetry in three phases.

Application

Designed to protect electric motors in a three-phase network. It is effective in situations where one of the phases is lost or there is voltage asymmetry, which may threaten the motor’s integrity.

Technical Data

• Supply voltage: 3 × 400 V + N
• Maximum load current: 10 A
• Contact: 1 × NO
• Voltage asymmetry activation: 55 V
• Voltage hysteresis: 5 V
• Disconnection delay: 4 s
• Power supply control: 3 × green LED
• Connection: screw terminals 4.0 mm²
• Tightening torque: 0.5 Nm
• Power consumption: 1.6 W
• Operating temperature: -25 to 40°C
• Dimensions: 2 modules (35 mm)
• Mounting: on a 35 mm rail
• Degree of protection: IP20
