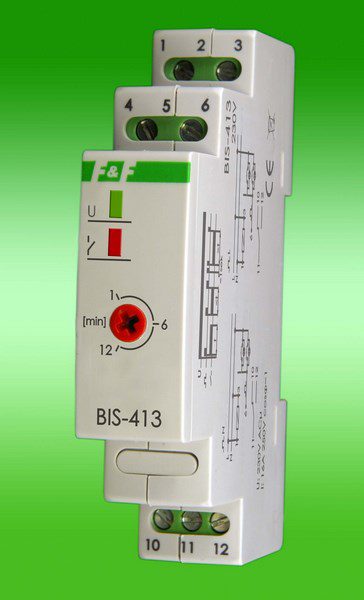

BIS-413 BISTABLE IMPULSE RELAY 16A 1M 1P 230V AC WITH TIMER
The electronic bistable relay allows for the control of lighting or other devices from several different points using parallel connected control buttons.
Application
The relay is designed for controlling lighting and other devices. With the built-in timer switch, you can adjust the time for which the device will be turned on.
Technical Data
- Power supply: 230 V
- Maximum load: 16 A
- Supply voltage: 165÷265 V AC
- Actuating element: relay
- Contact configuration: 1 × NO/NC
- Size: 1 module (18 mm)
- Mounting: on a 35 mm rail
- Switch-off time: 1÷12 min.
- Operating temperature: -25 ÷ 50 °C
- Protection degree: IP20
- Power consumption: 0.8 W
- Connection: screw terminals 2.5 mm²
- Tightening torque: 0.4 Nm
